ASTRA
18R1293

第三方数据ASTRA : 18R1293

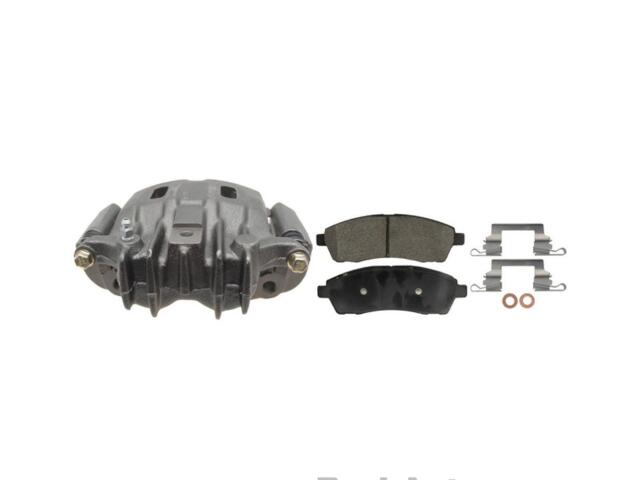

Caliper
ASTRA : 18R1293

Bleeder Thread Diameter: M10x1
Caliper Casting Material: Cast Iron
Caliper Color: Natural
Caliper Slides Included: Yes
Caliper Type: Floating
Casting Material: Cast Iron
Finish: Plain
Friction Material: Metallic
Friction Material Composition: Metallic
Height (IN): 6.5
Inlet Fitting Type: Female
Inlet Thread Diameter (IN): 0.375
Inlet Thread Diameter (MM): 9.53
Length (IN): 13.8
Mounting Bolt Thread Pitch (MM): 2.000
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Mounting Hole Diameter (IN): 14
Pad Wear Sensor Included: Yes
Pads Included: Yes
Piston 1 Diameter (IN): 1.8
Piston 1 Diameter (MM): 45.7
Piston 2 Diameter (IN): 1.8
Piston 2 Diameter (MM): 45.7
Weight (lb): 16.35
Width (IN): 7.1

适用车型

FORD (1)

OE号码

品牌	号码
OE	1803946*
