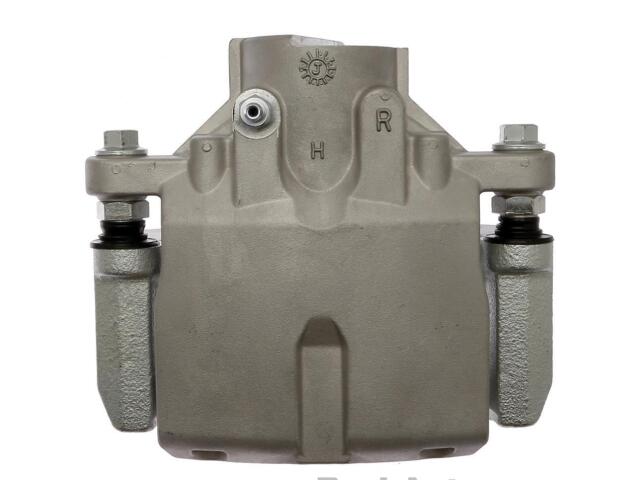

Caliper
ASTRA : 18FR2690

Bleeder Thread Diameter: M10x1
Caliper Casting Material: Aluminum
Caliper Color: Natural
Caliper Slides Included: Yes
Caliper Type: Floating
Casting Material: Aluminum
Finish: Plain
Height (IN): 7
Inlet Fitting Type: Female
Inlet Thread Diameter (IN): 0.394
Inlet Thread Diameter (MM): 10
Length (IN): 9.6
Mounting Bolt Thread Pitch (MM): 1.750
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Mounting Hole Diameter (IN): 12
Pad Wear Sensor Included: No
Pads Included: No
Piston 1 Diameter (IN): 1.9
Piston 1 Diameter (MM): 48.3
Weight (lb): 7
Width (IN): 7.1

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	1928568*
