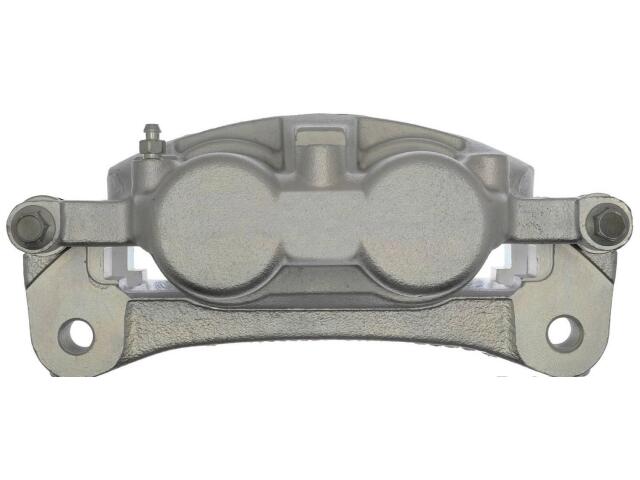

Caliper
ASTRA : 18FR12277

Bleeder Thread Diameter: M10x1
Caliper Casting Material: Cast Iron
Caliper Color: Natural
Caliper Slides Included: Yes
Caliper Type: Floating
Casting Material: Cast Iron
Finish: Plain
Height (IN): 6.62
Inlet Fitting Type: Female
Inlet Thread Diameter (IN): 0.394
Inlet Thread Diameter (MM): 10
Length (IN): 14
Mounting Bolt Thread Pitch (MM): 2.000
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Mounting Hole Diameter (IN): 16
Pad Wear Sensor Included: No
Pads Included: No
Piston 1 Diameter (IN): 1.8
Piston 1 Diameter (MM): 45.7
Piston 2 Diameter (IN): 1.8
Piston 2 Diameter (MM): 45.7
Weight (lb): 17.9
Width (IN): 7.38

适用车型

RAM (1)

OE号码

品牌	号码
OE	8887930*
