DURAGO
BP1093C

第三方数据DURAGO : BP1093C

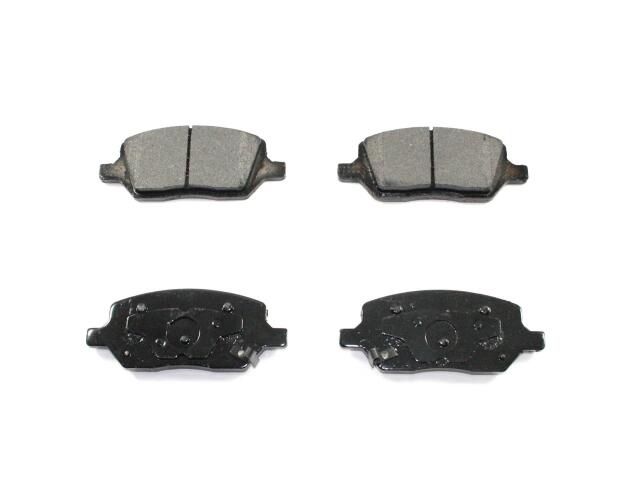

Brake Pad
DURAGO : BP1093C

Abutment Clips Included: No
Backing Material: Iron
Chamfered Edges: Yes
Friction Material Bonding Type: Bonded
Friction Material Composition: Ceramic
Friction Material Thickness Inner Pad (IN): 0.33
Friction Material Thickness Inner Pad (MM): 8.5
Friction Material Thickness Outer Pad (IN): 0.33
Friction Material Thickness Outer Pad (MM): 8.5
Height Inner Pad (IN): 2.03
Height Inner Pad (MM): 51.6
Height Outer Pad (IN): 2.03
Height Outer Pad (MM): 51.6
Mounting Hardware Included: No
Overall Thickness Inner Pad (IN): 0.56
Overall Thickness Inner Pad (MM): 14.1
Overall Thickness Outer Pad (IN): 0.56
Overall Thickness Outer Pad (MM): 14.1
Pad Shims Included: Yes
Pad Wear Sensor Included: Yes
Pad Wear Sensor Type: Mechanical
Plate Thickness Inner Pad (IN): 0.22
Plate Thickness Inner Pad (MM): 5.6
Plate Thickness Outer Pad (IN): 0.22
Plate Thickness Outer Pad (MM): 5.6
Slotted: Yes
Width Inner Pad (IN): 4.92
Width Inner Pad (MM): 125
Width Outer Pad (IN): 4.92
Width Outer Pad (MM): 125

适用车型

BUICK (1)

CHEVROLET (1)

PONTIAC (1)

SATURN (1)

VPG (1)

MOBILITY VENTURES (1)
