ASTRA
17D981M

第三方数据ASTRA : 17D981M

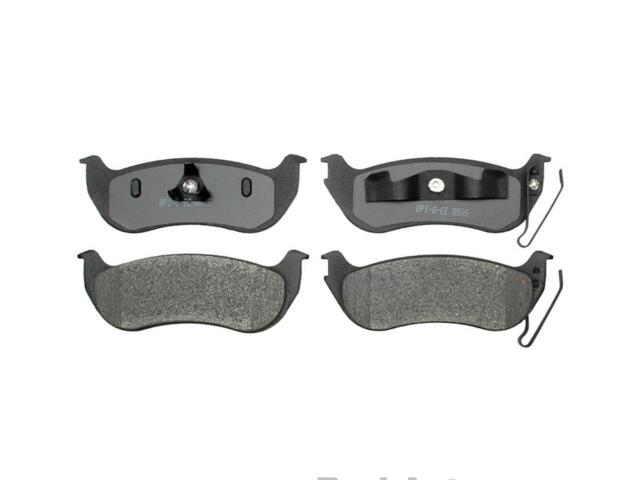

Brake Pad
ASTRA : 17D981M

Chamfered Edges: Yes
FMSI Number: 7863
Friction Material Attachment: Integrally Molded
Friction Material Composition: Metallic
Height (IN): 2.25
Inner Pad Friction Material Thickness (IN): 0.55
Inner Pad Friction Material Thickness (MM): 14
Inner Pad Height (IN): 1.940
Inner Pad Overall Thickness (IN): 0.204
Inner Pad Width (IN): 5.530
Length (IN): 6.75
Mounting Hardware Included: No
Outer Pad Friction Material Thickness (IN): 0.55
Outer Pad Friction Material Thickness (MM): 14
Outer Pad Height (IN): 1.940
Outer Pad Overall Thickness (IN): 0.204
Outer Pad Width (IN): 5.530
Pad Shims Included: Yes
Pad Wear Sensor Included: No
Slotted: No
Weight (lb): 3
Width (IN): 5.88

适用车型

FORD (2)

EXPLORER (2)

EXPLORER SPORT TRAC (2)

JEEP (2)

MERCURY (1)

OE号码

品牌	号码
OE	8905638*
