ASTRA
17D912M

第三方数据ASTRA : 17D912M

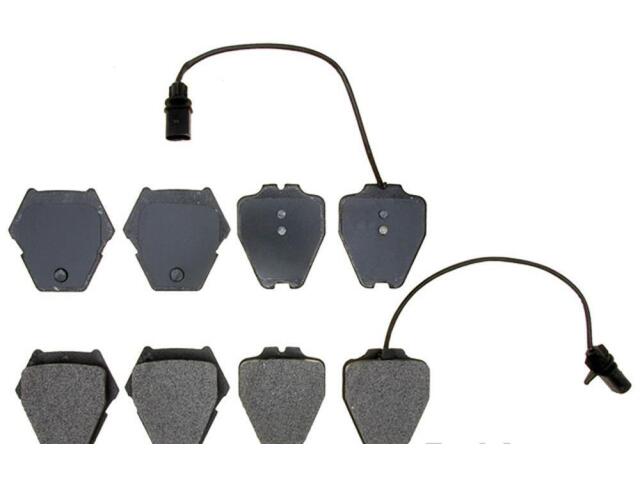

Brake Pad
ASTRA : 17D912M

Chamfered Edges: No
FMSI Number: 7725
Friction Material Attachment: Integrally Molded
Friction Material Composition: Metallic
Height (IN): 2.1
Inner Pad Friction Material Thickness (IN): 0.69
Inner Pad Friction Material Thickness (MM): 17.5
Inner Pad Height (IN): 2.970
Inner Pad Overall Thickness (IN): 0.181
Inner Pad Width (IN): 2.500
Length (IN): 9.3
Mounting Hardware Included: No
Outer Pad Friction Material Thickness (IN): 0.69
Outer Pad Friction Material Thickness (MM): 17.5
Outer Pad Height (IN): 2.970
Outer Pad Overall Thickness (IN): 0.181
Outer Pad Width (IN): 2.500
Pad Shims Included: Yes
Pad Wear Sensor Included: Yes
Slotted: Yes
Weight (lb): 5
Width (IN): 6.1

适用车型

AUDI (2)

OE号码

品牌	号码
OE	8903388*
