第三方数据ASTRA : 17D886M

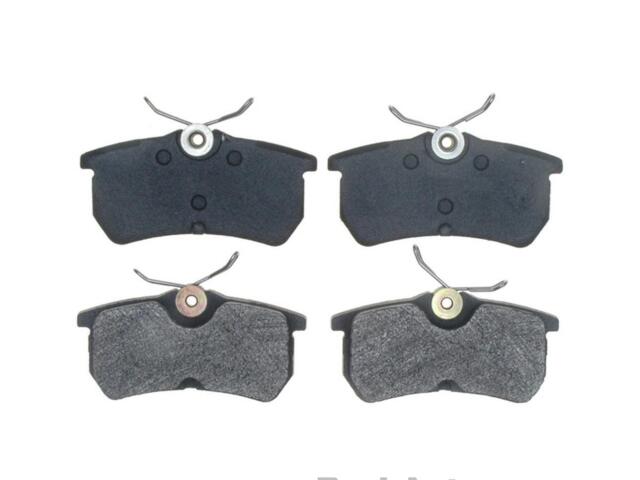

Brake Pad
ASTRA : 17D886M

Chamfered Edges: No
FMSI Number: 7763
Friction Material Attachment: Integrally Molded
Friction Material Composition: Metallic
Height (IN): 1.75
Inner Pad Friction Material Thickness (IN): 0.55
Inner Pad Friction Material Thickness (MM): 13.9
Inner Pad Height (IN): 1.680
Inner Pad Overall Thickness (IN): 0.217
Inner Pad Width (IN): 3.430
Length (IN): 6.88
Mounting Hardware Included: No
Outer Pad Friction Material Thickness (IN): 0.55
Outer Pad Friction Material Thickness (MM): 13.9
Outer Pad Height (IN): 1.680
Outer Pad Overall Thickness (IN): 0.217
Outer Pad Width (IN): 3.430
Pad Shims Included: No
Pad Wear Sensor Included: No
Slotted: No
Weight (lb): 1.6
Width (IN): 4.75

适用车型

FORD (2)

FIESTA (5)

FOCUS (3)

OE号码

品牌	号码
OE	8899730*
