ASTRA
17D714MH

第三方数据ASTRA : 17D714MH

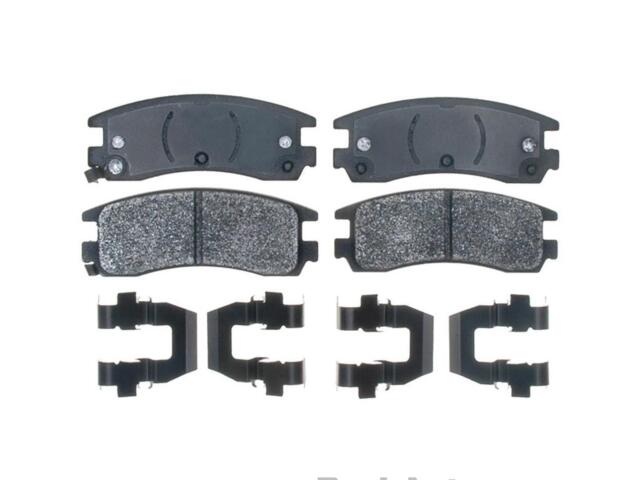

Brake Pad
ASTRA : 17D714MH

Chamfered Edges: No
FMSI Number: 7387
Friction Material Attachment: Integrally Molded
Friction Material Composition: Metallic
Height (IN): 1.8
Inner Pad Friction Material Thickness (IN): 0.54
Inner Pad Friction Material Thickness (MM): 13.8
Inner Pad Height (IN): 1.620
Inner Pad Overall Thickness (IN): 0.197
Inner Pad Width (IN): 4.240
Length (IN): 7
Mounting Hardware Included: Yes
Outer Pad Friction Material Thickness (IN): 0.54
Outer Pad Friction Material Thickness (MM): 13.8
Outer Pad Height (IN): 1.620
Outer Pad Overall Thickness (IN): 0.197
Outer Pad Width (IN): 4.240
Pad Shims Included: Yes
Pad Wear Sensor Included: No
Slotted: Yes
Weight (lb): 1.7
Width (IN): 4.6

适用车型

BUICK (2)

CADILLAC (1)

PONTIAC (1)

OE号码

品牌	号码
OE	1920144*
