ASTRA
17D709AM

第三方数据ASTRA : 17D709AM

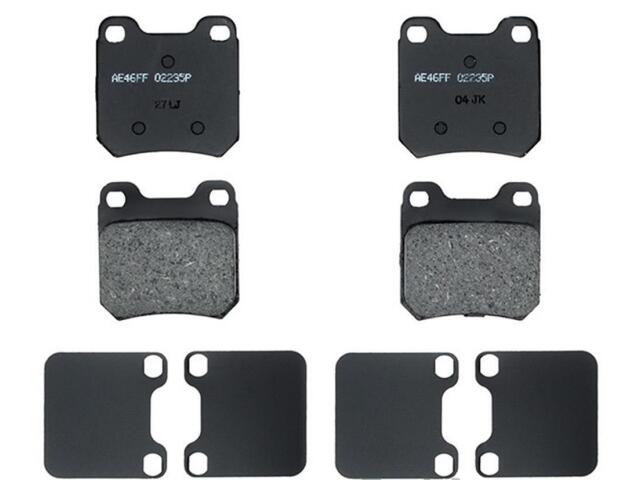

Brake Pad
ASTRA : 17D709AM

Chamfered Edges: No
FMSI Number: 7614
Friction Material Attachment: Integrally Molded
Friction Material Composition: Metallic
Height (IN): 4.8
Inner Pad Friction Material Thickness (IN): 0.58
Inner Pad Friction Material Thickness (MM): 14.8
Inner Pad Height (IN): 2.000
Inner Pad Overall Thickness (IN): 0.161
Inner Pad Width (IN): 2.430
Length (IN): 5.3
Mounting Hardware Included: No
Outer Pad Friction Material Thickness (IN): 0.58
Outer Pad Friction Material Thickness (MM): 14.8
Outer Pad Height (IN): 2.000
Outer Pad Overall Thickness (IN): 0.161
Outer Pad Width (IN): 2.430
Pad Shims Included: No
Pad Wear Sensor Included: No
Slotted: No
Weight (lb): 1.75
Width (IN): 2

适用车型

SATURN (1)

OE号码

品牌	号码
OE	1803997*
