第三方数据ASTRA : 17D484

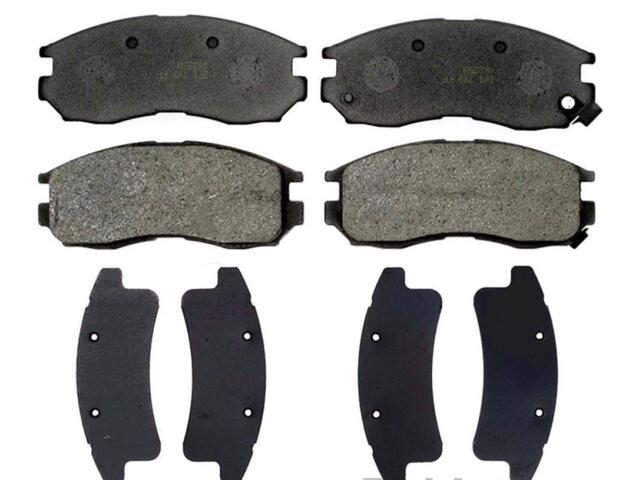

Brake Pad
ASTRA : 17D484

Chamfered Edges: No
FMSI Number: 7365
Friction Material Attachment: Integrally Molded
Friction Material Composition: Organic
Height (IN): 1.75
Inner Pad Friction Material Thickness (IN): 0.63
Inner Pad Friction Material Thickness (MM): 15.9
Inner Pad Overall Thickness (IN): 0.236
Inner Pad Width (IN): 5.030
Length (IN): 6.88
Mounting Hardware Included: No
Outer Pad Friction Material Thickness (IN): 0.63
Outer Pad Friction Material Thickness (MM): 15.9
Outer Pad Overall Thickness (IN): 0.236
Outer Pad Width (IN): 5.030
Pad Shims Included: No
Pad Wear Sensor Included: No
Slotted: No
Weight (lb): 3.4
Width (IN): 4.75

适用车型

CHRYSLER (1)

DODGE (1)

OE号码

品牌	号码
OE	1802905*
