第三方数据ASTRA : 17D1569CH

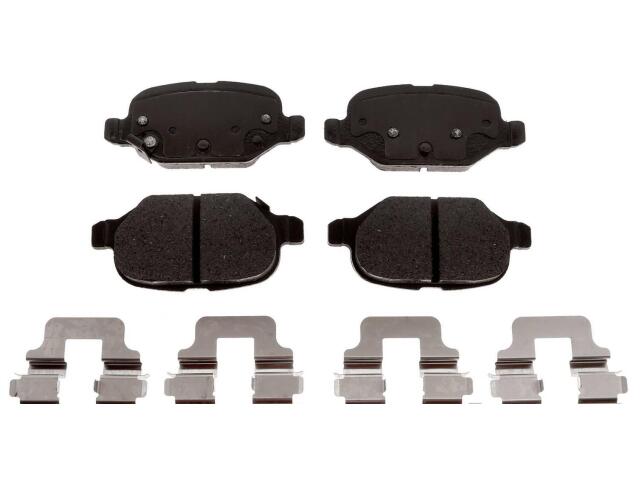

Brake Pad
ASTRA : 17D1569CH

FMSI Number: D1596-8778
Friction Material Attachment: Bonded
Friction Material Composition: Ceramic
Height (IN): 2
Inner Pad Friction Material Thickness (IN): 0.54
Inner Pad Friction Material Thickness (MM): 13.8
Inner Pad Height (IN): 1.740
Inner Pad Overall Thickness (IN): 0.545
Inner Pad Width (IN): 3.770
Length (IN): 9.12
Mounting Hardware Included: Yes
Outer Pad Friction Material Thickness (IN): 0.54
Outer Pad Friction Material Thickness (MM): 13.8
Outer Pad Height (IN): 1.740
Outer Pad Overall Thickness (IN): 0.545
Outer Pad Width (IN): 3.770
Pad Shims Included: Yes
Pad Wear Sensor Included: Yes
Weight (lb): 1.75
Width (IN): 6.25

适用车型

FIAT (1)

500 (3)

1.4L L4 (6)

1.4L L4 Turbocharged (8)

ELECTRIC (5)

OE号码

品牌	号码
OE	1930473*
