ASTRA
17D1335MH

第三方数据ASTRA : 17D1335MH

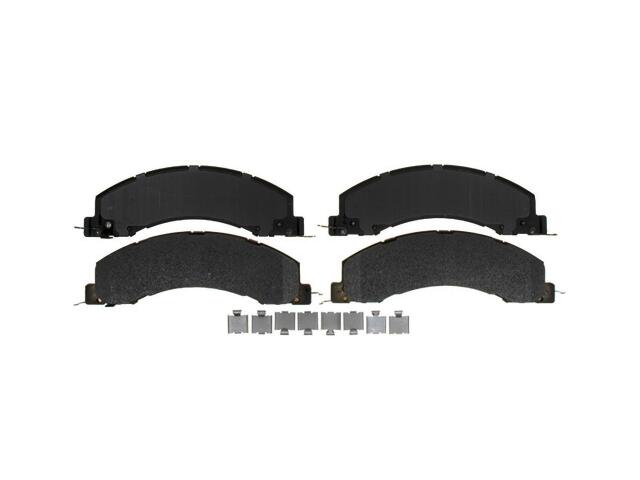

Brake Pad
ASTRA : 17D1335MH

Chamfered Edges: Yes
FMSI Number: D1335-8446
Friction Material Attachment: Bonded
Friction Material Composition: Metallic
Height (IN): 3.88
Inner Pad Friction Material Thickness (IN): 0.79
Inner Pad Friction Material Thickness (MM): 20
Inner Pad Height (IN): 2.950
Inner Pad Overall Thickness (IN): 0.775
Inner Pad Width (IN): 9.618
Length (IN): 11
Mounting Hardware Included: No
Outer Pad Friction Material Thickness (IN): 0.79
Outer Pad Friction Material Thickness (MM): 20
Outer Pad Height (IN): 2.950
Outer Pad Overall Thickness (IN): 0.775
Outer Pad Width (IN): 9.618
Pad Shims Included: Yes
Pad Wear Sensor Included: Yes
Slotted: No
Weight (lb): 11.07
Width (IN): 6.25

适用车型

DODGE (2)

RAM (2)

4500 (2)

6.4L V8 (10)

6.7L L6 DIESEL Turbocharged (13)

5500 (2)

6.4L V8 (10)

6.7L L6 DIESEL Turbocharged (13)

OE号码

品牌	号码
OE	1924112*
