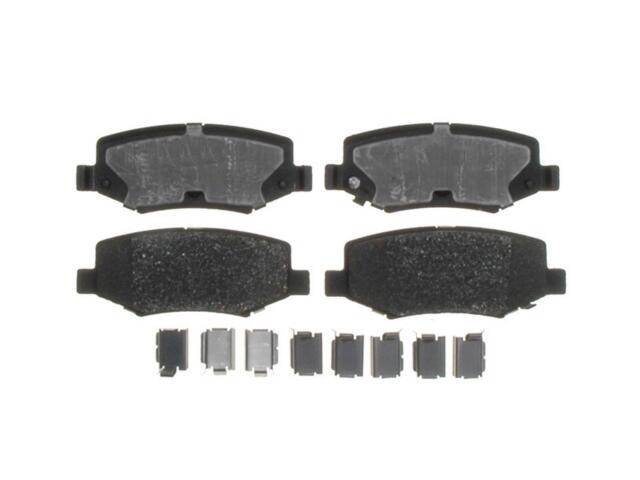

Brake Pad
ASTRA : 17D1274MH

Chamfered Edges: Yes
FMSI Number: 8390
Friction Material Attachment: Integrally Molded
Friction Material Composition: Metallic
Height (IN): 1.75
Inner Pad Friction Material Thickness (IN): 0.63
Inner Pad Friction Material Thickness (MM): 16
Inner Pad Height (IN): 1.630
Inner Pad Overall Thickness (IN): 0.240
Inner Pad Width (IN): 4.590
Length (IN): 6.88
Mounting Hardware Included: Yes
Outer Pad Friction Material Thickness (IN): 0.63
Outer Pad Friction Material Thickness (MM): 16
Outer Pad Height (IN): 1.630
Outer Pad Overall Thickness (IN): 0.240
Outer Pad Width (IN): 4.590
Pad Shims Included: Yes
Pad Wear Sensor Included: No
Slotted: No
Weight (lb): 3.1
Width (IN): 4.75

适用车型

JEEP (3)

WRANGLER (2)

WRANGLER JK (1)

LIBERTY (1)

DODGE (1)

OE号码

品牌	号码
OE	1917146*
