ASTRA
17D1093CHF1

第三方数据ASTRA : 17D1093CHF1

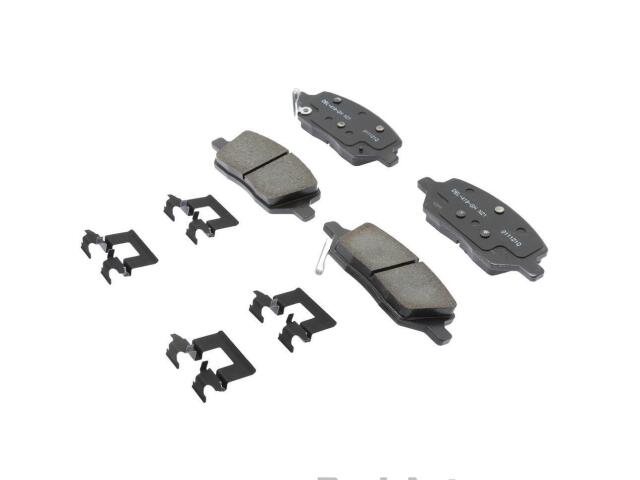

Brake Pad
ASTRA : 17D1093CHF1

Abutment Clips Included: Yes
Chamfered Edges: No
Friction Material Attachment: Bonded
Friction Material Composition: Hybrid
Height (IN): 2.12
Inner Pad Friction Material Thickness (IN): 0.22
Inner Pad Friction Material Thickness (MM): 5.588
Inner Pad Height (IN): 2.030
Inner Pad Overall Thickness (IN): 0.220
Inner Pad Width (IN): 4.920
Length (IN): 9.25
Mounting Hardware Included: Yes
Outer Pad Friction Material Thickness (IN): 0.22
Outer Pad Friction Material Thickness (MM): 5.588
Outer Pad Height (IN): 2.030
Outer Pad Overall Thickness (IN): 0.220
Outer Pad Width (IN): 4.920
Pad Shims Included: Yes
Pad Wear Sensor Included: Yes
Pad Wear Sensor Type: Mechanical
Slotted: Yes
Weight (lb): 2.47
Width (IN): 6.12

适用车型

BUICK (1)

CHEVROLET (1)

PONTIAC (1)

SATURN (1)

VPG (1)

MOBILITY VENTURES (1)

OE号码

品牌	号码
OE	17D1093C*

品牌	号码
OE	1915768*
