ASTRA
17D1060M

第三方数据ASTRA : 17D1060M

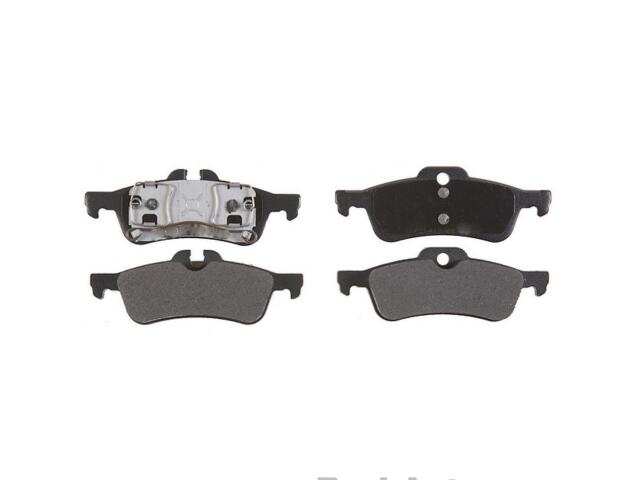

Brake Pad
ASTRA : 17D1060M

Chamfered Edges: No
FMSI Number: 7842
Friction Material Attachment: Integrally Molded
Friction Material Composition: Metallic
Height (IN): 1.75
Inner Pad Friction Material Thickness (IN): 0.61
Inner Pad Friction Material Thickness (MM): 15.5
Inner Pad Height (IN): 1.720
Inner Pad Overall Thickness (IN): 0.201
Inner Pad Width (IN): 4.850
Length (IN): 6.88
Mounting Hardware Included: No
Outer Pad Friction Material Thickness (IN): 0.61
Outer Pad Friction Material Thickness (MM): 15.5
Outer Pad Height (IN): 1.720
Outer Pad Overall Thickness (IN): 0.201
Outer Pad Width (IN): 4.850
Pad Shims Included: Yes
Pad Wear Sensor Included: No
Slotted: No
Weight (lb): 1.86
Width (IN): 4.75

适用车型

MINI (1)

OE号码

品牌	号码
OE	1914241*

品牌	号码
OE	8905633*
