GM GENUINE
85118811

第三方数据GM GENUINE : 85118811

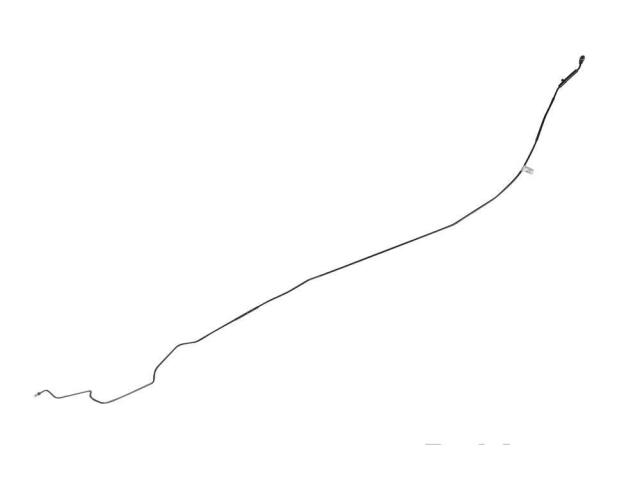

Brake Line
GM GENUINE : 85118811

Bendable: No
End 1 Flare Type: Inverted
End 1 Thread Diameter (IN): 0.47
End 1 Thread Diameter (MM): 12
End 2 Flare Type: Bubble
End 2 Thread Diameter (IN): 0.43
End 2 Thread Diameter (MM): 11
Fitting Material: Steel
Fitting Type: Flare
Inside Diameter (IN): 0.19
Inside Diameter (MM): 4.95
Line Diameter (IN): 0.27
Line Diameter (MM): 6.86
Line Length (IN): 113.07
Line Length (MM): 2872
Line Material: Steel
Outer Spring: No
Outer Wear Guard: Yes
Outside Diameter (IN): 0.27
Outside Diameter (MM): 6.74
Pre-Formed: Yes

适用车型

CADILLAC (1)

CHEVROLET (1)

GMC (1)
