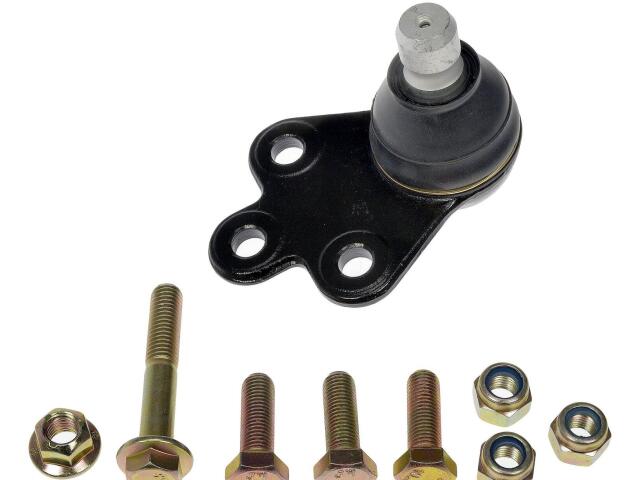

Ball Joint
DORMAN : BJ98006PR

Adjustable: No
Attachment Type: Bolt-on
Ball Joint Assembly: Yes
Ball Joint Installed: Yes
Bearing Material: Polymer
Bolts/Studs Included: Yes
Bushing Included: No
Bushings Included: No
Castle Nut Included: No
Color: Black
Cotter Pin Hole: No
Cotter Pin Included: No
Distance Between Mounting Holes (MM): 50
Dust Boot Included: Yes
Dust Boot Material: Polychloroprene
Grease Fitting Included: No
Greaseable: No
Height (MM): 69
Housing Press Fit Diameter: 41.6 mm
Length (MM): 69
Material: Steel
Maximum Outside Diameter (MM): 76.5
Mount Plate Included: Yes
Mounting Bolt Head Diameter (MM): 10
Mounting Bolt Length (MM): 30
Mounting Bolt Shank Diameter (MM): 10
Mounting Bolt Thread Diameter (MM): 10
Mounting Bolt Thread Length (MM): 30
Mounting Bolt Thread Pitch (MM): 1.5
Mounting Bolts Included: Yes
Mounting Hardware Included: Yes
Mounting Hole Quantity: 3
Mounting Type: Bolt On
Nuts Included: Yes
Package Contents: 1 Ball Joint; 4 Nuts; 4 Bolts
Stud Taper Per Foot (IN): 2
Stud Tapered End 1 Diameter (mm): 27.2
Stud Tapered End 2 Diameter (mm): 22
Stud Thread Diameter (MM): 18
Stud Thread Length (MM): 35.5
Stud Thread Pitch (mm): 1.5
Stud Type: Pinch
Suspension Grade Type: Standard
Tapered Stud: No
Thread Pitch: 16 mm
Type: Bolt-on
Washers Included: No
Width (MM): 50
Wrench Size (mm): 21

适用车型

TESLA (1)

OE号码

品牌	号码
OE	104396500*
OE	104396500*
OE	104396600*

品牌	号码
OE	104396600*
OE	600653200*
OE	600653200*

品牌	号码
OE	600893000*
OE	600893000*
