DORMAN
BJ59124XL

第三方数据DORMAN : BJ59124XL

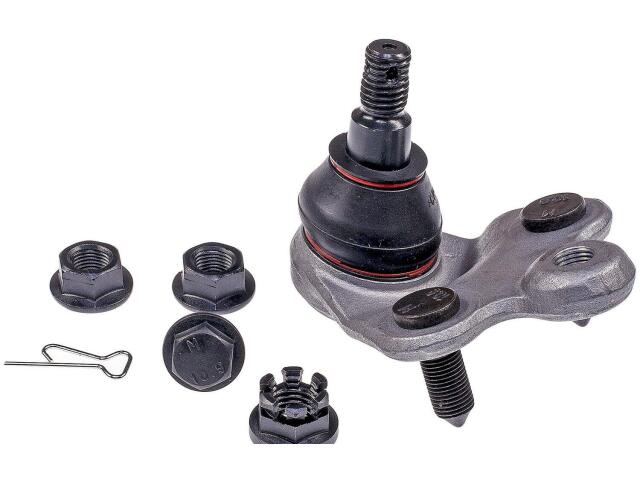

Ball Joint
DORMAN : BJ59124XL

Adjustable: No
Attachment Type: Taper
Ball Joint Assembly: Yes
Ball Joint Installed: Yes
Bearing Material: Polymer
Bolts/Studs Included: Yes
Bushing Included: No
Bushings Included: No
Castle Nut Included: Yes
Color: Grey
Cotter Pin Hole: Yes
Cotter Pin Included: No
Dust Boot Included: Yes
Dust Boot Material: Polychloroprene
Grease Fitting Included: No
Greaseable: No
Height (MM): 85.03
Housing Press Fit Diameter: 45 mm
Length (MM): 111
Material: Steel
Maximum Outside Diameter (MM): 61
Mount Plate Included: No
Mounting Bolts Included: No
Mounting Hardware Included: Yes
Mounting Hole Quantity: 3
Mounting Type: Bolt On
Nuts Included: Yes
Package Contents: 1 Ball Joint; 1 Castle Nut; 1 Cotter Pin; 3 Nuts; 3 Bolts
Stud Taper Per Foot (IN): 2
Stud Tapered End 1 Diameter (mm): 27.2
Stud Tapered End 2 Diameter (mm): 22
Stud Thread Diameter (MM): 14
Stud Thread Length (MM): 35.5
Stud Thread Pitch (mm): 1.5
Stud Type: Taper
Suspension Grade Type: Premium
Tapered Stud: Yes
Thread Pitch: 16 mm
Type: Threaded
Washers Included: No
Width (MM): 59
Wrench Size (mm): 12

适用车型

HONDA (1)

CIVIC (4)

1.3L L4 ELECTRIC/GAS (5)

1.8L L4 (6)

1.8L L4 CNG (6)

2.0L L4 (6)

ACURA (1)

参考号

厂商	号码
MACPHERSON RIDE CHASSIS	2GS6050*
MEVOTECH LP	MS6050*
MEVOTECH ORIGINAL GRADE	GS6050*
MEVOTECH ORIGINAL GRADE INTERNATIONAL	GS6050*

厂商	号码
MOOG	K50006*
OMNICRAFT	3001000*
OMNIPARTS	3001000*
PARTS PLUS CHASSIS	PMS6050*

厂商	号码
QUALITY AUTOMOTIVE PRODUCTS	CGS6050*
QUALITY PRO	463385*
XRF - PLATINUM	K50006*

OE号码

品牌	号码
OE	51220SNAA0*

品牌	号码
OE	51220SNAA0*
