ASTRA
45D2172

第三方数据ASTRA : 45D2172

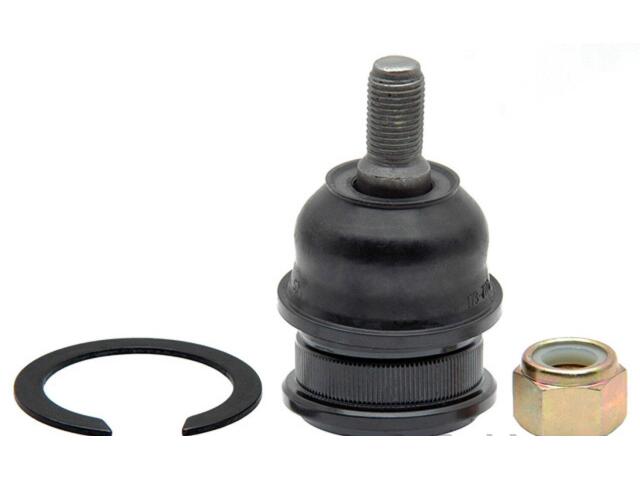

Ball Joint
ASTRA : 45D2172

Adjustable: No
Ball Joint Assembly: Yes
Bushings Included: No
Castle Nut Included: Yes
Cotter Pin Hole: No
Cotter Pin Included: No
Dust Boot Included: Yes
Dust Boot Material: Rubber
Grease Fitting Included: No
Greaseable: No
Height (IN): 3.3
Height (MM): 83.82
Length (IN): 5.3
Length (MM): 134.62
Material: Steel
Maximum Outside Diameter (IN): 1.57
Mounting Hardware Included: Yes
Stud Tapered End 1 Diameter (in): 0.677
Stud Tapered End 2 Diameter (in): 0.590
Stud Thread Diameter (MM): 12
Stud Thread Pitch (mm): 1.25
Stud Type: Threaded
Type: Press In
Washers Included: No
Width (IN): 4
Width (MM): 101.6

适用车型

HYUNDAI (5)

ACCENT (1)

ELANTRA (2)

ELANTRA GT (1)

TIBURON (2)

SONATA (2)

KIA (4)

FORTE (3)

FORTE5 (2)

SPECTRA (1)

SPECTRA5 (1)

OE号码

品牌	号码
OE	1946155*

品牌	号码
OE	8891166*
