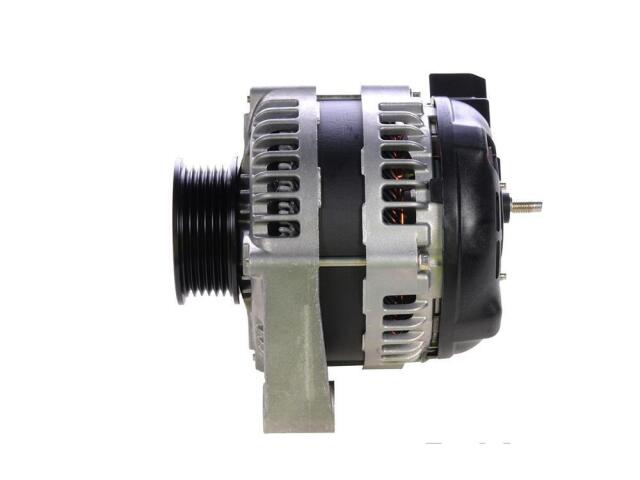

Alternator / Generator
GM GENUINE : 23480515

AC Service Tap: No
Amperage Rating: 150
Case Color: Natural
Case Material: Aluminum
Decoupled Or Clutch Pulley: No
External Fan Included: No
External Regulator Included: No
Family: DENSO
Fan Type: Internal
Finish: Aluminum
Ground Type: Negative
Mounting Type: Side Mount
One Wire Capable: No
Plug Clock Rear View Main Mounting Ear at 6 O Clock: 4
Pulley Belt Type: Serpentine
Pulley Groove Quantity: 6
Pulley Included: Yes
Pulley Outside Diameter (IN): 2.6
Pulley Outside Diameter (MM): 66.7
Regulator Type: Internal
Rotation Direction: Clockwise
Terminal Quantity: 2
Voltage: 12 vDC
Voltage (VDC): 12 vDC

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	2592544*
