ASTRA
3351320

第三方数据ASTRA : 3351320

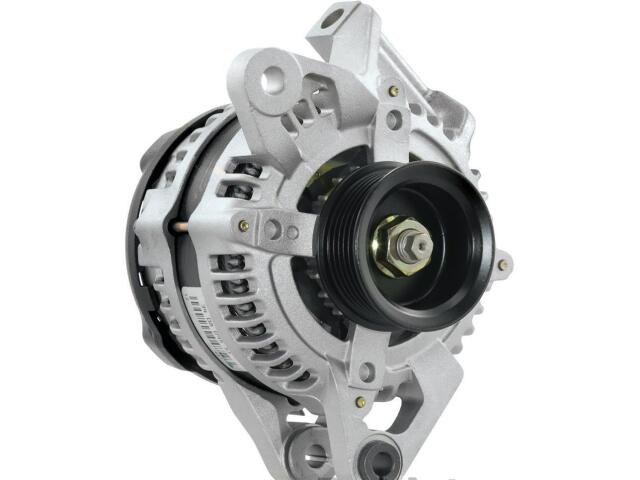

Alternator / Generator
ASTRA : 3351320

Amperage Rating: 155
Case Color: Aluminum
Case Material: Aluminum
Decoupled Or Clutch Pulley: No
Distance Between Mounting Feet (IN): 3.3
Distance Between Mounting Feet (mm): 85.0
Family: NDIISC6P
Fan Type: Internal
Ground Type: Negative
Height (IN): 6.8
Length (IN): 7.8
One Wire Capable: No
Outside Pulley Diameter (mm): 62
Plug Clock Rear View Main Mounting Ear at 6 O Clock: 7
Plug Type: PC1003
Programming Required: No
Pulley Belt Type: Serpentine
Pulley Included: Yes
Pulley Outside Diameter (IN): 2.4
Regulator Type: Internal
Rotation Direction: Clockwise
Split Mounting Foot Overall Inner Spacing (IN): 3.3
Split Mounting Foot Overall Inner Spacing (mm): 85.0
Voltage: 12
Weight (lb): 13.06
Width (IN): 7.3

适用车型

CADILLAC (1)

PONTIAC (1)

OE号码

品牌	号码
OE	335-132*

品牌	号码
OE	1933870*
