ASTRA
3351259

第三方数据ASTRA : 3351259

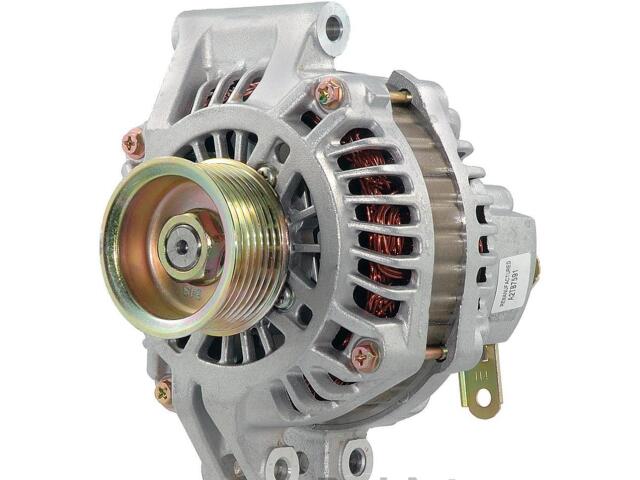

Alternator / Generator
ASTRA : 3351259

Alternator Case Material: Aluminum
Amperage Rating: 90
DE to Pulley 1st Groove (mm): 40.0mm
DE to Rotor Shaft End (mm): 55.0
External Fan Included: Not Applicable
Family: MIII
Fan Type: Internal
Ground Type: Negative
Height (IN): 6.8
Inside Distance Between Mounting Feet (mm): 45.0
Length (IN): 7.8
Mounting Type: 2 Pivot Feet
One Wire Capable: No
Outside Pulley Diameter (mm): 60
Plug Clock Rear View Main Mounting Ear at 6 O Clock: 6
Plug Type: PC_296
Programming Required: No
Pulley Belt Type: Serpentine
Pulley Included: Yes
Regulator Type: Internal
Rotation Direction: Clockwise
Voltage: 12
Weight (lb): 8.5
Width (IN): 7.3

适用车型

HONDA (1)

ACURA (1)

OE号码

品牌	号码
OE	335-125*

品牌	号码
OE	1929841*
