第三方数据ASTRA : 3351091

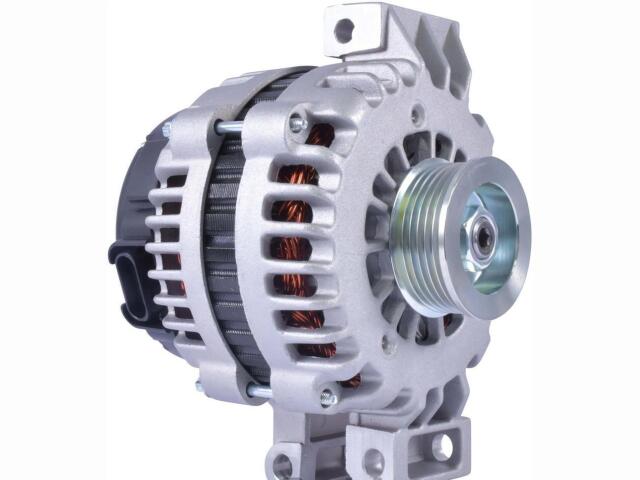

Alternator / Generator
ASTRA : 3351091

Alternator Case Material: Aluminum
Amperage Rating: 150
DE to Pulley 1st Groove (mm): 24.0mm
DE to Rotor Shaft End (mm): 61.0
External Fan Included: Not Applicable
Family: Delco AD244
Fan Type: Internal
Finish: Same as OE
Ground Type: Negative
Height (IN): 6.8
Length (IN): 7.8
Mounting Type: Side Mount
One Wire Capable: No
Outside Pulley Diameter (mm): 63
Plug Clock Rear View Main Mounting Ear at 6 O Clock: 4
Programming Required: No
Pulley Belt Type: Serpentine
Pulley Included: Yes
Regulator Type: Internal
Rotation Direction: Clockwise
Voltage: 12
Weight (lb): 15
Width (IN): 7.3

适用车型

ISUZU (1)

SAAB (1)

BUICK (1)

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	335-109*

品牌	号码
OE	8887730*
