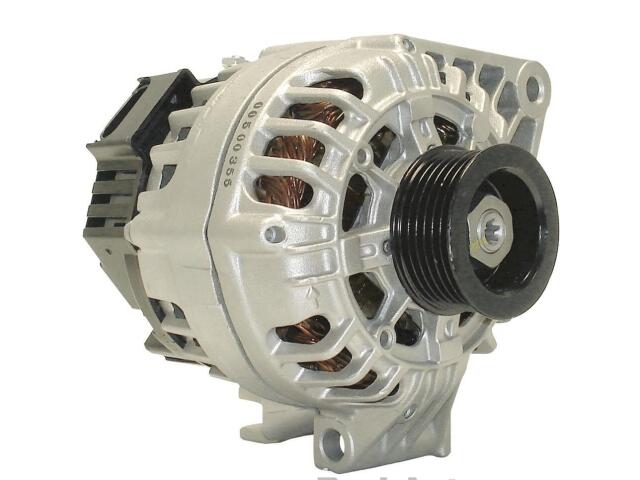

Alternator / Generator
ASTRA : 3342592

Alternator Case Material: Aluminum
Amperage Rating: 105
DE to Pulley 1st Groove (mm): 22.0mm
DE to Rotor Shaft End (mm): 43.0
Decoupled Or Clutch Pulley: No
External Fan Included: Not Applicable
Family: Valeo
Fan Type: Internal
Finish: Same as OE
Ground Type: Negative
Mounting Type: Pad Mount
Plug Clock Rear View Main Mounting Ear at 6 O Clock: 9
Plug Type: 322
Programming Required: No
Pulley Belt Type: Serpentine
Pulley Included: Yes
Pulley Outside Diameter (MM): 57
Regulator Type: Internal
Rotation Direction: Clockwise (Right)
Voltage: 12.0

适用车型

CHEVROLET (1)

PONTIAC (1)

OE号码

品牌	号码
OE	334-259*

品牌	号码
OE	8886185*
