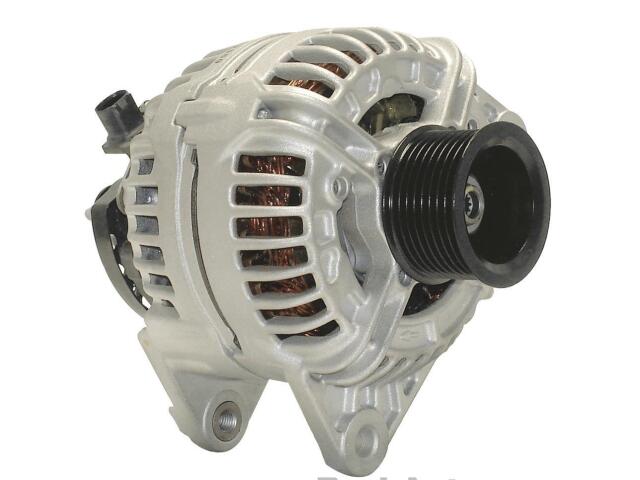

Alternator / Generator
ASTRA : 3342591

Alternator Case Material: Aluminum
Amperage Rating: 136
DE to Pulley 1st Groove (mm): 33.0mm
DE to Rotor Shaft End (mm): 61.0
Decoupled Or Clutch Pulley: No
External Fan Included: Not Applicable
External Regulator Included: Yes
Family: Bosch
Fan Type: Internal
Finish: Same as OE
Ground Type: Negative
Height (IN): 7.7
Inside Distance Between Mounting Feet (mm): 68.0
Length (IN): 11.4
Mounting Type: 2 Pivot Feet & Adjustment Ears
Plug Clock Rear View Main Mounting Ear at 6 O Clock: 2
Plug Type: 363
Programming Required: No
Pulley Belt Type: Serpentine
Pulley Included: Yes
Pulley Outside Diameter (MM): 58
Regulator Type: External
Rotation Direction: Clockwise (Right)
Split Mounting Foot Overall Outside Spacing (mm): 112
Voltage: 12.0
Weight (lb): 14.85
Width (IN): 9.4

适用车型

DODGE (2)

OE号码

品牌	号码
OE	334-259*

品牌	号码
OE	8886185*
