ASTRA
3342565

第三方数据ASTRA : 3342565

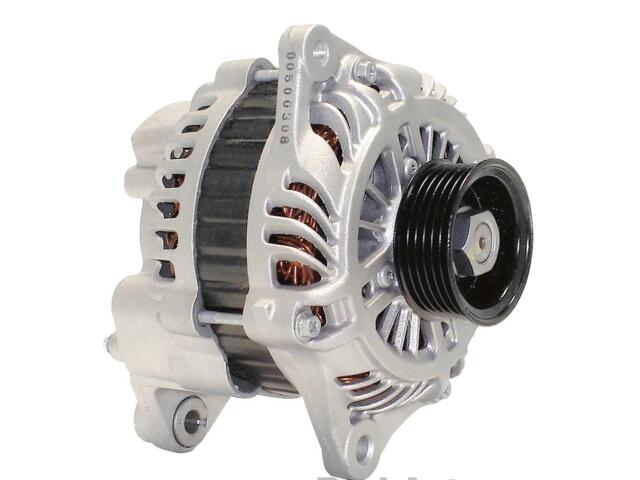

Alternator / Generator
ASTRA : 3342565

Alternator Case Material: Aluminum
Amperage Rating: 110
DE to Pulley 1st Groove (mm): 25.0mm
DE to Rotor Shaft End (mm): 46.0
Decoupled Or Clutch Pulley: No
External Fan Included: Not Applicable
Family: Mitsubishi
Fan Type: Internal
Finish: Same as OE
Ground Type: Negative
Inside Distance Between Mounting Feet (mm): 81.0
Mounting Type: 2 Pivot Feet
Plug Clock Rear View Main Mounting Ear at 6 O Clock: 10
Programming Required: No
Pulley Belt Type: Serpentine
Pulley Included: Yes
Regulator Type: Internal
Rotation Direction: Clockwise (Right)
Voltage: 12.0

适用车型

NISSAN (1)

INFINITI (2)

OE号码

品牌	号码
OE	334-256*
OE	334256*

品牌	号码
OE	8886183*

品牌	号码
OE	8886183*
