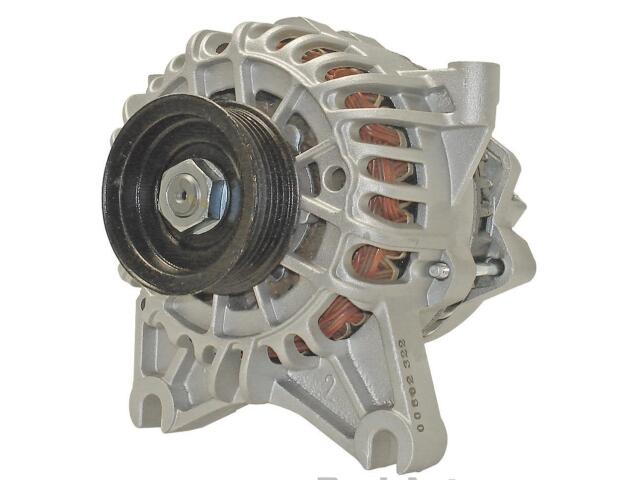

Alternator / Generator
ASTRA : 3342533

Alternator Case Material: Aluminum
Amperage Rating: 110
DE to Pulley 1st Groove (mm): 23.0mm
DE to Rotor Shaft End (mm): 44.0
Decoupled Or Clutch Pulley: No
Family: FORD
Fan Type: Internal
Finish: Same as OE
Ground Type: Negative
Mounting Type: Saddle Mount
Plug Clock Rear View Main Mounting Ear at 6 O Clock: 10
Programming Required: No
Pulley Belt Type: Serpentine
Pulley Included: Yes
Pulley Outside Diameter (MM): 54
Regulator Type: Internal
Rotation Direction: Clockwise (Right)
Split Mounting Foot Overall Outside Spacing (mm): 26
Voltage: 12.0

适用车型

FORD (1)

OE号码

品牌	号码
OE	334-253*

品牌	号码
OE	1913609*
