ASTRA
3342502

第三方数据ASTRA : 3342502

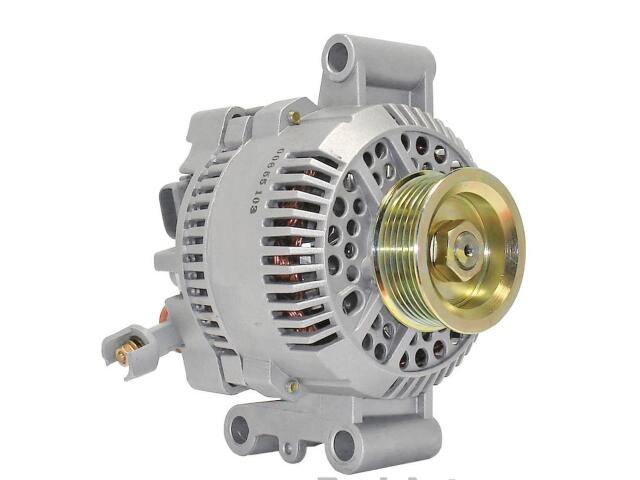

Alternator / Generator
ASTRA : 3342502

Alternator Case Material: Aluminum
Amperage Rating: 95
DE to Pulley 1st Groove (mm): 39.0mm
DE to Rotor Shaft End (mm): 60.0
Decoupled Or Clutch Pulley: No
Family: FORD
Fan Type: Internal
Finish: Same as OE
Ground Type: Negative
Mounting Type: Side Mount
Plug Clock Rear View Main Mounting Ear at 6 O Clock: 2
Programming Required: No
Pulley Belt Type: Serpentine
Pulley Included: Yes
Regulator Type: Internal
Rotation Direction: Clockwise (Right)
Split Mounting Foot Overall Outside Spacing (mm): 75
Voltage: 12.0

适用车型

FORD (1)

MAZDA (1)

OE号码

品牌	号码
OE	334-250*

品牌	号码
OE	1913606*
