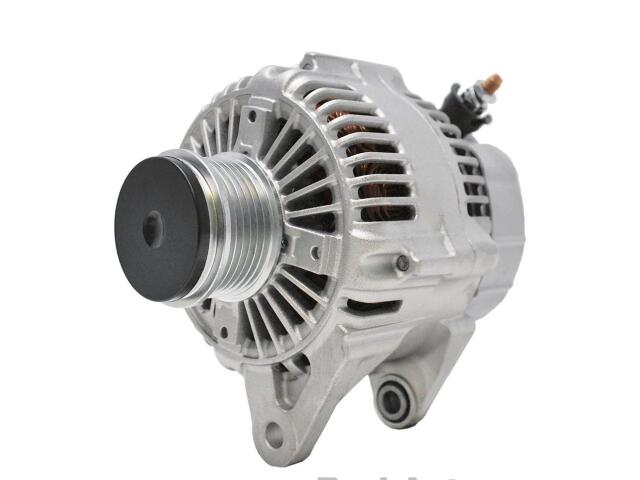

Alternator / Generator
ASTRA : 3341484

Alternator Case Material: Aluminum
Amperage Rating: 117
DE to Pulley 1st Groove (mm): 15.0mm
DE to Rotor Shaft End (mm): 36.0
Decoupled Or Clutch Pulley: Yes
External Regulator Included: Yes
Family: Nippondenso
Fan Type: Internal
Finish: Same as OE
Ground Type: Negative
Inside Distance Between Mounting Feet (mm): 68.0
Mounting Type: 2 Pivot Feet
Plug Clock Rear View Main Mounting Ear at 6 O Clock: 10
Programming Required: No
Pulley Belt Type: Serpentine
Pulley Included: Yes
Regulator Type: External
Rotation Direction: Clockwise (Right)
Voltage: 12.0

适用车型

JEEP (1)

OE号码

品牌	号码
OE	334-148*

品牌	号码
OE	1913447*
