GM GENUINE
15285211

第三方数据GM GENUINE : 15285211

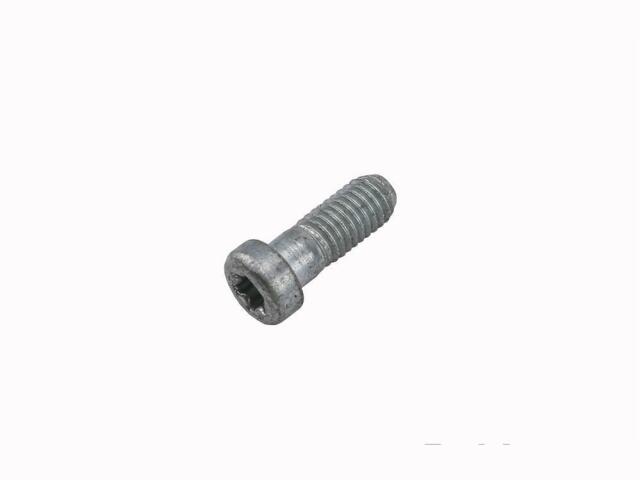

ABS Control Module Nut / Bolt
GM GENUINE : 15285211

Bolt Grade: 9.8
Bolt Type: Button head screw
Color: Silver
Head Diameter (IN): 0.3
Head Diameter (MM): 7.62
Head Drive Type: Star
Head Shape: Pan
Head Tool Size: T25
Material: Steel
Overall Length (IN): 0.66
Overall Length (MM): 16.88
Partially Threaded: No
S.A.E. Or Metric: Metric
SAE or Metric: Metric
Self Drilling: No
Self Tapping: No
Thread Diameter (IN): 0.2
Thread Diameter (MM): 5
Thread Direction: Clockwise
Thread Length (IN): 0.48
Thread Length (MM): 12.15
Thread Pitch (IN): 0.8
Thread Pitch (mm): 0.8
Thread Size: M5X0.8X13.5
Under Head Length (IN): 0.52
Under Head Length (MM): 13.17
Washer Attached: No

适用车型

SATURN (1)
