GM GENUINE
1533415

第三方数据GM GENUINE : 1533415

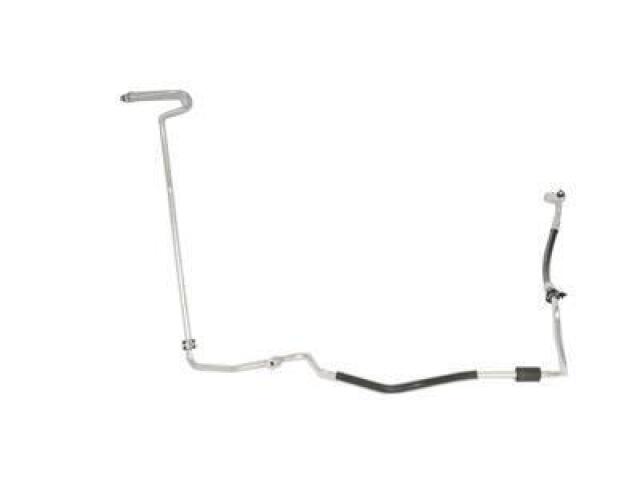

A/C Refrigerant Hose / Line
GM GENUINE : 1533415

End 1 Inside Diameter (IN): 0.189
End 1 Inside Diameter (MM): 4.8
End 1 Outside Diameter (IN): 0.337
End 1 Outside Diameter (MM): 8.56
End 1 Type: Block
End 2 Inside Diameter (IN): 0.307
End 2 Inside Diameter (MM): 7.79
End 2 Outside Diameter (IN): 0.461
End 2 Outside Diameter (MM): 11.72
End 2 Type: Male Snap Connect
Fittings Included: Yes
Gasket or Seal Included: Yes
Hose Shape: Molded Assembly
Inside Diameter (IN): 0.276
Inside Diameter (MM): 7.02
Material: Aluminum, Rubber
Original Equipment Replacement: Yes
Outside Diameter (IN): 0.375
Outside Diameter (MM): 9.53
Refrigerant Type: R134a
Switch Service Port: Yes
System Pressure: High

适用车型

CHEVROLET (1)

PONTIAC (2)

OE号码

品牌	号码
OE	15-3341*
OE	1579669*

品牌	号码
OE	153298*

品牌	号码
OE	153325*
