66865

第三方数据FOUR SEASONS : 66865

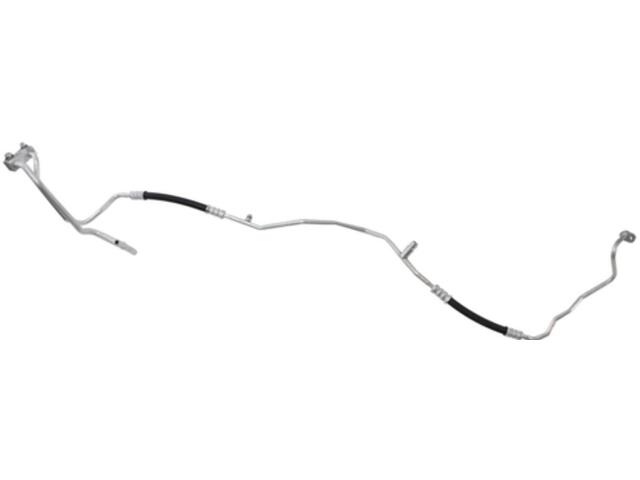

A/C Refrigerant Hose / Line
FOUR SEASONS : 66865

Bracket?: w/ Bracket
Description: Hose Assemblies
Discharge End Type: Flange
Gasket / Seals?: Included
Manifold?: w/ Manifold
Material: Aluminum / Rubber
Muffler?: w/o Muffler
O-Ring A Number/Desc: 24611 / Green O-Ring
O-Ring A Quantity: 1
O-Ring B Number/Desc: 24401 / Slim Line Sealing Washer
O-Ring B Quantity: 1
O-Ring C Number/Desc: 24402 / Slimline Washer
O-Ring C Quantity: 1
O-Ring D Number/Desc: 24606 / Green O-Ring
O-Ring D Quantity: 1
Refrigerant Type: R134a
Service Port Cap High Side: 59988
Service Port Qty: 1
Service Port Type: R134a Quick Disconnect
Service Port Valve Core High Side: 59335
Service Port?: w/ Service Port
Style: Hose Assy /Discharge, Liquid
Suction End Type: Male Springlock
Svc Port High Side: High Side
Switch Port Quantity: 1
Switch Port Size: M10x1.25
Switch Port?: w/ Switch Port
System Pressure: High Pressure
Type: Discharge & Liquid Line

适用车型

FIAT (1)

参考号

厂商	号码
AUTOPART INTERNATIONAL	2403-71376*
BALKAMP	21177*
BASE HVAC	6686*
CARQUEST PREMIUM AC	T6686*
COMPRESSOR WORKS	79704*
COOLING DEPOT CANADA	6686*

厂商	号码
FACTORY AIR	6686*
FOUR SEASONS	A8354*
FOUR SEASONS	21177*
GILMORE PRODUCTS	80075*
MURRAY COMPRESSORS	6686*
NAPA/TEMP-TEM	A8354*

厂商	号码
NAPA/TEMP-TEM	21177*
O'REILLY/MURRAY COMPRESSORS	6686*
RANSHU A/C	57272*
UAC SHORT KITS	HA112092*
UNI-SELECT/COOLING DEPOT	6686*
UNIVERSAL AIR CONDITIONER, INC.	HA112092*

OE号码

品牌	号码
FIAT	68201914A*
