第三方数据ASTRA : 1533840

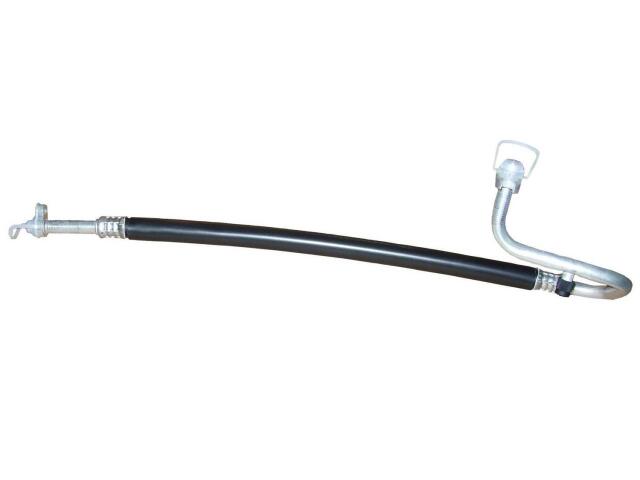

A/C Refrigerant Hose / Line
ASTRA : 1533840

End 1 Inside Diameter (IN): 0.538
End 1 Inside Diameter (MM): 13.66
End 1 Outside Diameter (IN): 0.693
End 1 Outside Diameter (MM): 17.59
End 1 Type: Block
End 2 Inside Diameter (IN): 0.538
End 2 Inside Diameter (MM): 13.66
End 2 Outside Diameter (IN): 0.693
End 2 Outside Diameter (MM): 17.59
End 2 Type: Block
Fittings Included: No
Gasket or Seal Included: Yes
Height (IN): 8.5
Hose Shape: Molded Assembly
Inside Diameter (IN): 0.66
Inside Diameter (MM): 16.76
Length (IN): 20.75
Length (MM): 717.1
Material: Aluminum, Rubber
Original Equipment Replacement: Yes
Outside Diameter (IN): 1.078
Outside Diameter (MM): 27.38
Refrigerant Type: R134a
Switch Service Port: No
System Pressure: Low
Weight (lb): 1.18
Width (IN): 18.38

适用车型

CHEVROLET (1)

PONTIAC (1)

OE号码

品牌	号码
OE	15-3384*

品牌	号码
OE	2583300*
