第三方数据VDO / CONTINENTAL : FA70826

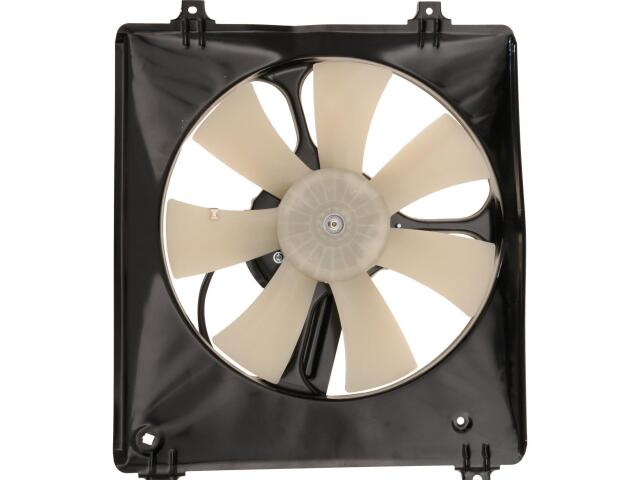

A/C Condenser Fan Assembly
VDO / CONTINENTAL : FA70826

Airflow Rate: 1352.491
Amperage Rating: 7.3
Blade Material: Plastic/Metal
Blade Type: Forward Align Fin
Color: White
Connector Quantity: 1
Connector Type: PLUG
Control Unit Included: No
Depth (IN): 3.24
Fan 1 Blade Quantity: 7
Fan 1 Diameter (IN): 13.31
Fan Rotation: Clockwise
Fan Type: Single
Hard Wired Or Plug In: Plug-in
Height (IN): 19.11
Material: Metal /Plastic
Mounting Bracket Included: No
Shroud Color: Black
Shroud Material: Plastic
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
Voltage: 12
Width (IN): 15.56
Wiring Harness Included: No

适用车型

ACURA (1)

OE号码

品牌	号码
OE	38611R70A0*

品牌	号码
OE	38615RK1A0*

品牌	号码
OE	38616RK1A5*
