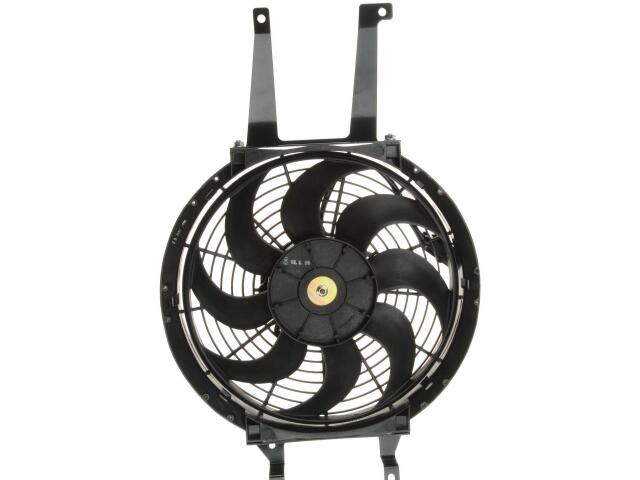

A/C Condenser Fan Assembly
VDO / CONTINENTAL : FA70611

Airflow Rate: 816.585
Amperage Rating: 9.2
Blade Material: Plastic/Metal
Blade Type: S-Blade
Color: Black
Connector Quantity: 1
Connector Type: PLUG
Control Unit Included: No
Depth (IN): 2.61
Fan 1 Blade Quantity: 8
Fan 1 Diameter (IN): 10.98
Fan Rotation: Counterclockwise
Fan Type: Single
Hard Wired Or Plug In: Plug-in
Height (IN): 18.83
Material: Metal /Plastic
Mounting Bracket Included: No
Shroud Color: Black
Shroud Material: Plastic
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Bullet
Voltage: 12
Width (IN): 12.4
Wiring Harness Included: No

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	1571742*
