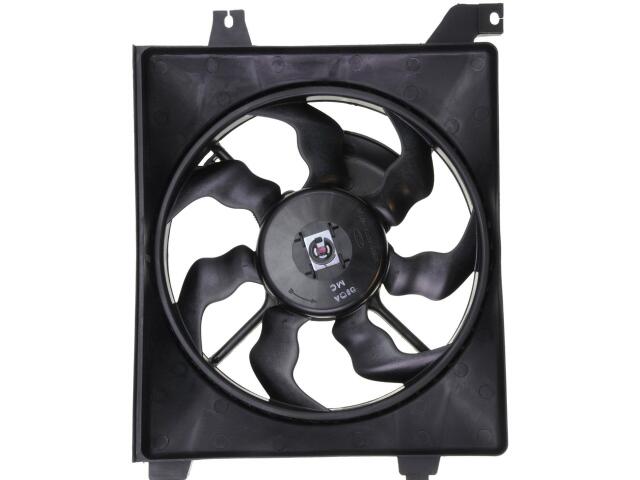

A/C Condenser Fan Assembly
VDO / CONTINENTAL : FA70527

Airflow Rate: 1129.433
Amperage Rating: 6.6
Blade Material: Plastic/Metal
Blade Type: Curved S-Blade
Color: Black
Connector Quantity: 1
Connector Type: PLUG
Control Unit Included: No
Depth (IN): 4.45
Fan 1 Blade Quantity: 7
Fan 1 Diameter (IN): 12.2
Fan Rotation: Clockwise
Fan Type: Single
Hard Wired Or Plug In: Plug-in
Height (IN): 17.16
Material: Metal /Plastic
Mounting Bracket Included: No
Shroud Color: Black
Shroud Material: Plastic
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
Voltage: 12
Width (IN): 13.07
Wiring Harness Included: No

适用车型

HYUNDAI (1)

OE号码

品牌	号码
OE	977301E00*
