GM GENUINE
1563555

第三方数据GM GENUINE : 1563555

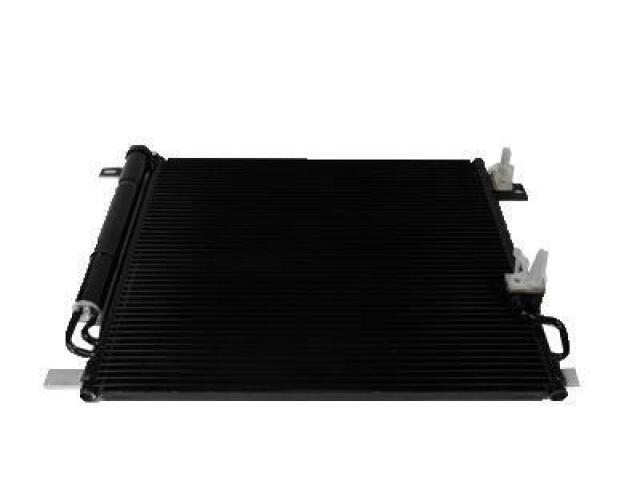

A/C Condenser
GM GENUINE : 1563555

Condenser Core Type: Parallel Flow
Core Length (IN): 18.15
Core Length (MM): 461
Core Material: Aluminum
Core Thickness (IN): 0.63
Core Thickness (MM): 16
Core Width (IN): 20.04
Core Width (MM): 509
Includes Drier: No
Inlet Diameter (IN): 0.47
Inlet Diameter (MM): 12
Inlet Fitting Gender: Female
Inlet Fitting Thread Diameter (IN): 0.4724
Inlet Fitting Thread Diameter (MM): 12
Inlet Fitting Type: Block Fitting
Mounting Hardware Included: No
Oil Cooler Included: No
Outlet Diameter (IN): 0.47
Outlet Diameter (MM): 12
Outlet Fitting Gender: Female
Outlet Fitting Thread Diameter (IN): 0.4724
Outlet Fitting Thread Diameter (MM): 12
Outlet Fitting Type: Block Fitting
Refrigerant Type: R134a

适用车型

CHEVROLET (1)

HUMMER (2)

GMC (1)

OE号码

品牌	号码
OE	15-6355*
OE	2596405*

品牌	号码
OE	156335*

品牌	号码
OE	2584441*
