GM GENUINE
1563245

第三方数据GM GENUINE : 1563245

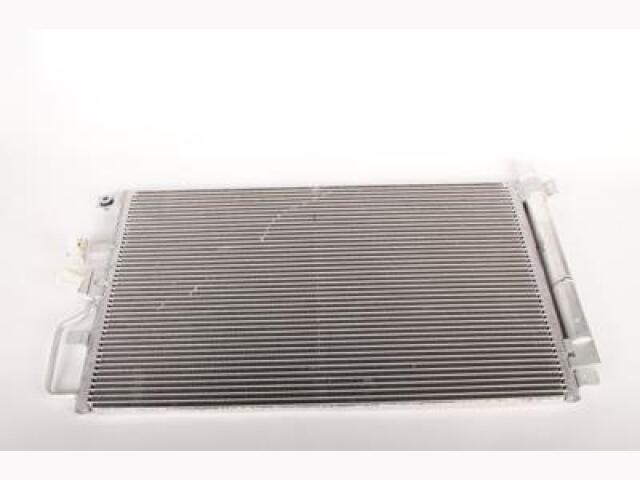

A/C Condenser
GM GENUINE : 1563245

Condenser Core Type: Parallel Flow
Core Length (IN): 16.69
Core Length (MM): 424
Core Material: Aluminum
Core Thickness (IN): 0.63
Core Thickness (MM): 16
Core Width (IN): 27.28
Core Width (MM): 693
Includes Drier: Yes
Inlet Diameter (IN): 0.31
Inlet Diameter (MM): 8
Inlet Fitting Gender: Female
Inlet Fitting Thread Diameter (IN): 0.3149
Inlet Fitting Thread Diameter (MM): 8
Inlet Fitting Type: Block Fitting
Mounting Hardware Included: No
Oil Cooler Included: No
Outlet Diameter (IN): 0.31
Outlet Diameter (MM): 8
Outlet Fitting Gender: Female
Outlet Fitting Thread Diameter (IN): 0.3149
Outlet Fitting Thread Diameter (MM): 8
Outlet Fitting Type: Block Fitting
Refrigerant Type: R134a

适用车型

CHEVROLET (1)

PONTIAC (1)

OE号码

品牌	号码
OE	15-6324*
OE	1925697*

品牌	号码
OE	1578144*
OE	1912982*

品牌	号码
OE	1925653*
