GM GENUINE
1562899

第三方数据GM GENUINE : 1562899

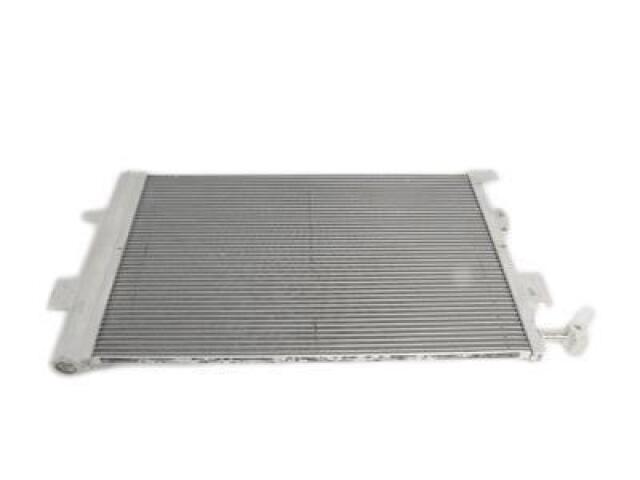

A/C Condenser
GM GENUINE : 1562899

Condenser Core Type: Parallel Flow
Core Length (IN): 16.3
Core Length (MM): 414
Core Material: Aluminum
Core Thickness (IN): 0.51
Core Thickness (MM): 13
Core Width (IN): 22.48
Core Width (MM): 571
Includes Drier: Yes
Inlet Diameter (IN): 0.47
Inlet Diameter (MM): 12
Inlet Fitting Gender: Female
Inlet Fitting Type: Block Fitting
Mounting Hardware Included: No
Oil Cooler Included: No
Outlet Diameter (IN): 0.47
Outlet Diameter (MM): 12
Outlet Fitting Gender: Female
Outlet Fitting Type: Block Fitting
Refrigerant Type: R134a

适用车型

CADILLAC (1)

CHEVROLET (2)

OE号码

品牌	号码
OE	15-6289*

品牌	号码
OE	1044289*
