A/C Compressor & Component Kit
UAC : KT5229A

[A/C Compressor] - Control Valve (Y/ N): Y
[A/C Compressor] - Diode (Y/ N): Y
[A/C Compressor] - Discharge Port (MM): 20
[A/C Compressor] - Gauge Line (MM): 51
[A/C Compressor] - Grooves: 5
[A/C Compressor] - Pulley Diameter (MM): 106
[A/C Compressor] - Style: CVC
[A/C Compressor] - Suction Port (MM): 26
[A/C Compressor] - Voltage: 12

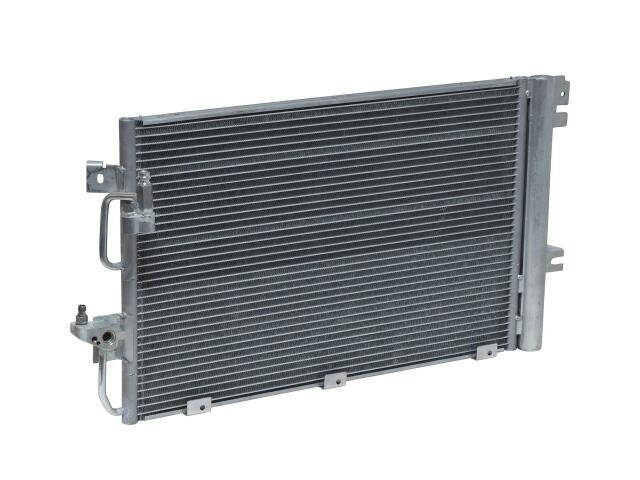

[A/C Condenser] - Core Width (MM): 540
[A/C Condenser] - Depth (MM): 16.7
[A/C Condenser] - Height (MM): 380
[A/C Condenser] - Inlet / Outelt (MM): 12
[A/C Condenser] - Total Width (MM): 630
[A/C Condenser] - Width (MM): 545
[A/C Expansion Valve] - LiquidInlet: 10.4mm
[A/C Expansion Valve] - LiquidOutlet: 13.6mm
[A/C Expansion Valve] - SuctionInlet: 16.4mm
[A/C Expansion Valve] - SuctionOutlet: 19.6mm

适用车型

SATURN (1)

OE号码

品牌	号码
OE	9316862*
