FOUR SEASONS
TSN2771

第三方数据FOUR SEASONS : TSN2771

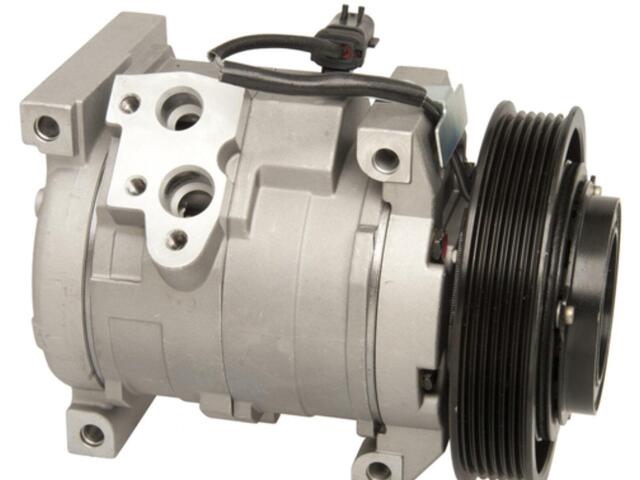

A/C Compressor & Component Kit
FOUR SEASONS : TSN2771

[A/C Compressor] - Clutch Included: Included
[A/C Compressor] - Coil Clock Position: 1 Wire Lead
[A/C Compressor] - Coil Voltage: 12 2H
[A/C Compressor] - Compatible Refrigerant Oil Type: PAG 46
[A/C Compressor] - Compressor Type: 10S17C
[A/C Compressor] - Mounting Type: Tangent Mount
[A/C Compressor] - Oil Filled: Yes
[A/C Compressor] - Printed Foot Note: May Require use of OE Manifold
[A/C Compressor] - Pulley Belt Type: Serpentine
[A/C Compressor] - Pulley Groove Quantity: 6
[A/C Compressor] - Refrigerant Type: R134a
[A/C Compressor] - Terminal Type: Pin
[A/C Compressor] - Type: Nippondenso
[A/C Orifice Tube] - Color: Orange / White
[A/C Orifice Tube] - Orifice Dia. IN: .057 in
[A/C Orifice Tube] - Style: Standard
[A/C Orifice Tube] - Type: Orifice Tubes
[A/C Receiver Drier / Accumulator] - Body Diameter: 3.563 in
[A/C Receiver Drier / Accumulator] - Body Length: 8.500 in
[A/C Receiver Drier / Accumulator] - Material: Aluminum
[A/C Receiver Drier / Accumulator] - Mounting Bracket Included: w/o Bracket
[A/C Receiver Drier / Accumulator] - Outlet Fraction: 3/4 in
[A/C Receiver Drier / Accumulator] - Style: Complete Unit
[A/C Receiver Drier / Accumulator] - Switch: w/ Switch Port
[A/C Receiver Drier / Accumulator] - Switch Port Dia. IN: 0.472 in
[A/C Receiver Drier / Accumulator] - Switch Service Port: w/o Service Port

适用车型

JEEP (1)

OE号码

品牌	号码
OE	471039*
OE	55037578A*
OE	55037578A*

品牌	号码
OE	R5037578A*
OE	RL037578A*

品牌	号码
OE	RX037578A*
OE	TSR277*
