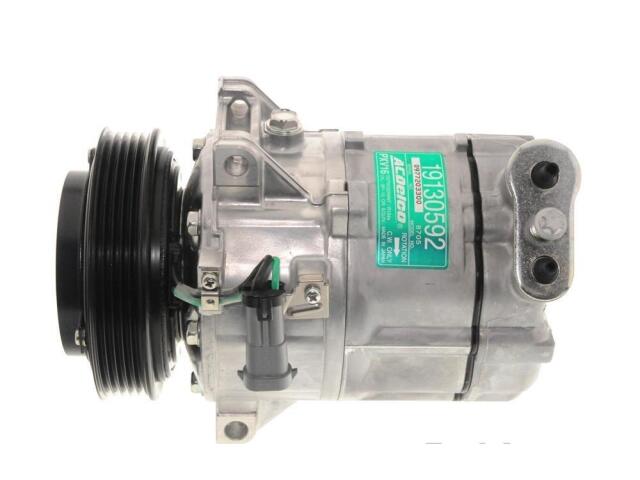

A/C Compressor
GM GENUINE : 19130592

Casing Outside Diameter (in): 0.47
Clutch Included: Yes
Clutch Maximum Diameter (IN): 4.06
Clutch Maximum Diameter (MM): 103
Coil Voltage (2H): 12
Color: Silver
Compatible Refrigerant Oil Type: PAG
Compressor Mount Hole Quantity: 3
Connector Gender: Female
Connector Quantity: 1
Connector Shape: Oval
Discharge Port Inside Diameter (IN): 0.71
Discharge Port Inside Diameter (MM): 12
Distance From Clutch To Mounting Flange (IN): 1.2
Distance From Clutch To Mounting Flange (MM): 31.2
Material: Steel
Mounting Hole Quantity: 3
Mounting Type: Tangent Mount
Oil Filled: Yes
Outside Pulley Diameter (in): 4.84
Outside Pulley Diameter (mm): 123
Pulley Belt Type: Serpentine
Pulley Groove Quantity: 5
Refrigerant Type: R134a
Rotation: Clockwise
Suction Port Inside Diameter (MM): 18
Terminal Quantity: 2
Terminal Type: Pin
Wire Quantity: 2

适用车型

SATURN (1)
