GM GENUINE
1522327

第三方数据GM GENUINE : 1522327

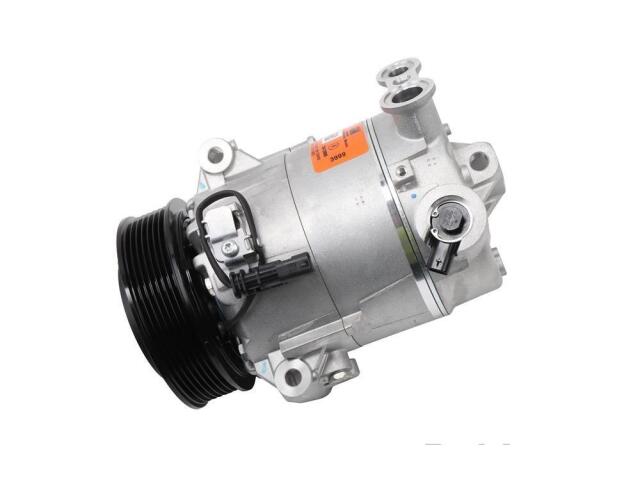

A/C Compressor
GM GENUINE : 1522327

Casing Outside Diameter (in): 0.47
Clutch Included: Yes
Clutch Maximum Diameter (IN): 4.02
Clutch Maximum Diameter (MM): 102
Coil Voltage (2H): 12
Color: Silver, Black
Compatible Refrigerant Oil Type: PAG
Compressor Mount Hole Quantity: 3
Connector Gender: Female
Connector Quantity: 2
Connector Shape: Oval
Discharge Port Inside Diameter (IN): 0.71
Discharge Port Inside Diameter (MM): 12
Distance From Clutch To Mounting Flange (IN): 1.768503937
Distance From Clutch To Mounting Flange (MM): 44.92
Mount Hole Quantity: 3
Mounting Hole Quantity: 3
Mounting Type: Bolt On
Oil Filled: Yes
Outside Pulley Diameter (in): 4.57
Outside Pulley Diameter (mm): 116
Pulley Belt Type: Serpentine
Pulley Groove Quantity: 8
Refrigerant Type: R134a
Suction Port Inside Diameter (MM): 18
Terminal Quantity: 4
Terminal Type: Pin
Thermal Or Non Thermal: Non Thermal

适用车型

BUICK (2)

CHEVROLET (2)

OE号码

品牌	号码
OE	15-2232*
OE	8407172*

品牌	号码
OE	2331408*
OE	2341399*

品牌	号码
OE	152221*
OE	152228*
