GM GENUINE
1522273

第三方数据GM GENUINE : 1522273

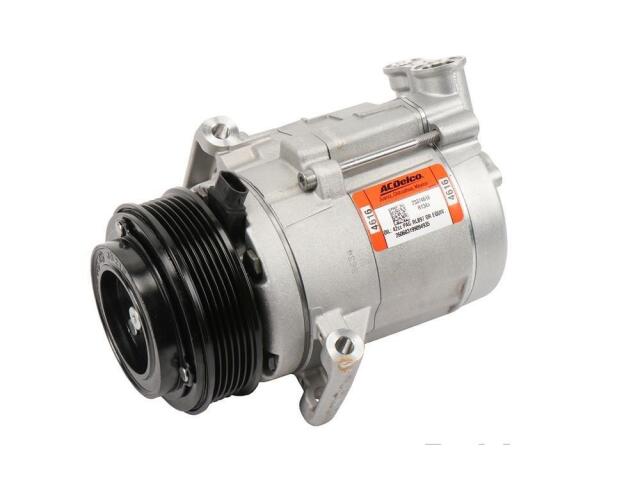

A/C Compressor
GM GENUINE : 1522273

Casing Outside Diameter (in): 0.47
Clutch Included: Yes
Clutch Maximum Diameter (IN): 4.49
Clutch Maximum Diameter (MM): 114
Coil Voltage (2H): 12
Compatible Refrigerant Oil Type: PAG
Compressor Mount Hole Quantity: 2
Connector Gender: Female
Connector Quantity: 1
Connector Shape: Oval
Discharge Port Inside Diameter (IN): 0.71
Discharge Port Inside Diameter (MM): 12
Distance From Clutch To Mounting Flange (IN): 2
Distance From Clutch To Mounting Flange (MM): 50.9
Mount Hole Quantity: 2
Mounting Flange Thickness (IN): 0.23
Mounting Flange Thickness (MM): 5.79
Mounting Hole Quantity: 3
Mounting Type: Bolt On
Oil Filled: Yes
Outside Pulley Diameter (in): 4.49
Outside Pulley Diameter (mm): 114
Pulley Belt Type: Serpentine
Pulley Groove Quantity: 6
Refrigerant Type: R134a
Suction Port Inside Diameter (MM): 18
Terminal Quantity: 2
Terminal Type: Pin
Wire Quantity: 2

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	15-2227*
OE	2337461*

品牌	号码
OE	2279890*

品牌	号码
OE	152221*
