GM GENUINE
1521745

第三方数据GM GENUINE : 1521745

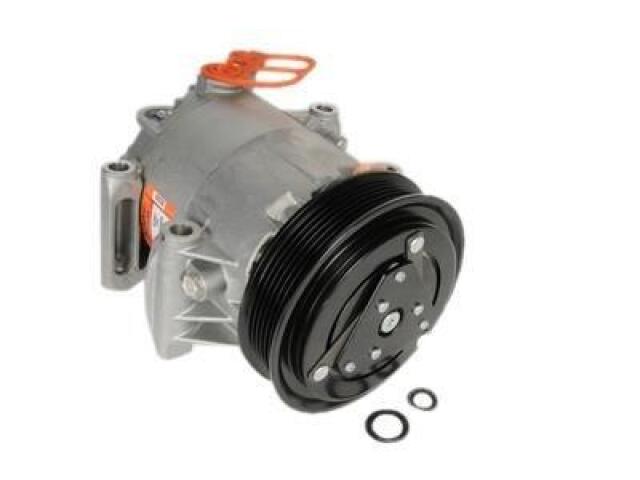

A/C Compressor
GM GENUINE : 1521745

Belt Type: Serpentine
Casing Outside Diameter (in): 0.47
Clutch Included: Yes
Clutch Maximum Diameter (IN): 3.82
Clutch Maximum Diameter (MM): 97
Clutch Pulley Diameter (IN): 5.141in
Clutch Pulley Diameter (MM): 130.6mm
Coil Clock Position: 1
Coil Voltage (2H): 12
Compatible Refrigerant Oil Type: PAG
Compressor Type: CVC
Connector Gender: Female
Connector Quantity: 1
Connector Shape: Oval
Connector Terminal Quantity: 2
Discharge Port Inside Diameter (IN): 0.71
Discharge Port Inside Diameter (MM): 12
Mount Hole Quantity: 4
Mounting Hole Quantity: 2
Mounting Type: Tangent Mount
Oil Filled: Yes
Outside Pulley Diameter (in): 4.57
Outside Pulley Diameter (mm): 116
Pulley Belt Type: Serpentine
Pulley Groove Quantity: 6
Refrigerant Type: R134a
Suction Port Inside Diameter (IN): 0.698
Suction Port Inside Diameter (MM): 18
Terminal Quantity: 2
Terminal Type: Pin

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	15-2174*
OE	8901907*

品牌	号码
OE	8901933*

品牌	号码
OE	1941817*
