ASTRA
19344856

第三方数据ASTRA : 19344856

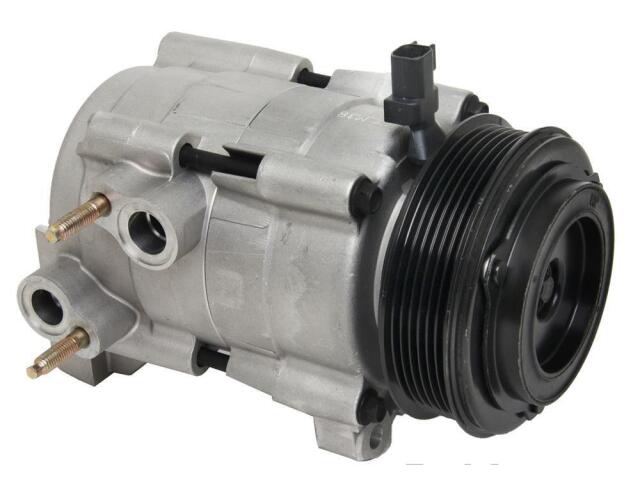

A/C Compressor
ASTRA : 19344856

Belt Type: Serpentine
Clutch Included: Included
Clutch Maximum Diameter (IN): 4.44
Clutch Maximum Diameter (MM): 4.4375
Coil Clock Position: 3
Coil Voltage: 12
Compatible Refrigerant Oil Type: PAG 46
Compressor Type: FS18
Connector Shape: Rectangular
Discharge Port Inside Diameter (IN): 0.638
Discharge Port Inside Diameter (MM): 16.2
Distance From Clutch To Mounting Flange (IN): 0.98
Distance From Clutch To Mounting Flange (MM): 0.984375
Mounting Type: Tangent Mount
Oil Filled: Included
Programming Required: No
Pulley Belt Type: Serpentine
Pulley Lip Diameter (IN): 4.44
Pulley Lip Diameter (MM): 4.4375
Pulley Ridge Diameter (IN): 4.44
Pulley Ridge Diameter (MM): 4.4375
Refrigerant Type: R134a
Suction Port Inside Diameter (IN): 0.701
Suction Port Inside Diameter (MM): 17.8
Switch Service Port: No
Terminal Type: Pin

适用车型

SATURN (1)
