DURAGO
BR90194401

第三方数据DURAGO : BR90194401

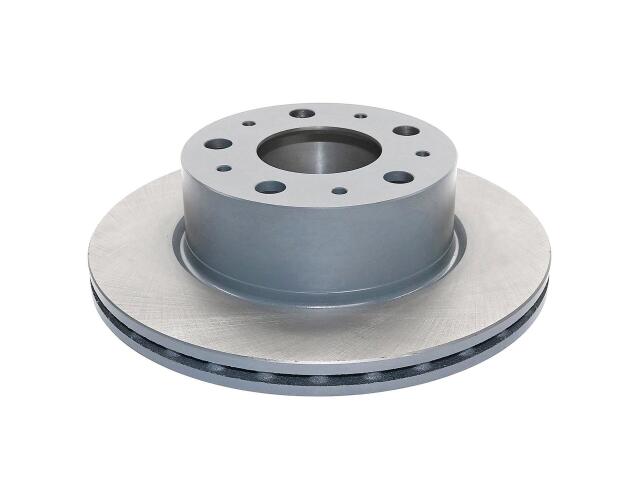

Rotor
DURAGO : BR90194401

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.11
Center Hole Diameter (MM): 79
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.78
Discard Thickness (MM): 19.9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.12
Mounting Bolt Hole Circle Diameter (MM): 130
Mounting Bolt Hole Diameter (IN): 0.7
Mounting Bolt Hole Diameter (MM): 17.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22
Outside Diameter (IN): 11.81
Outside Diameter (MM): 300
Overall Height (IN): 3.15
Overall Height (MM): 80
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

RAM (4)

OE号码

品牌	号码
OE	BR901944-0*

品牌	号码
OE	AX901944*
