第三方数据DURAGO : BR900512

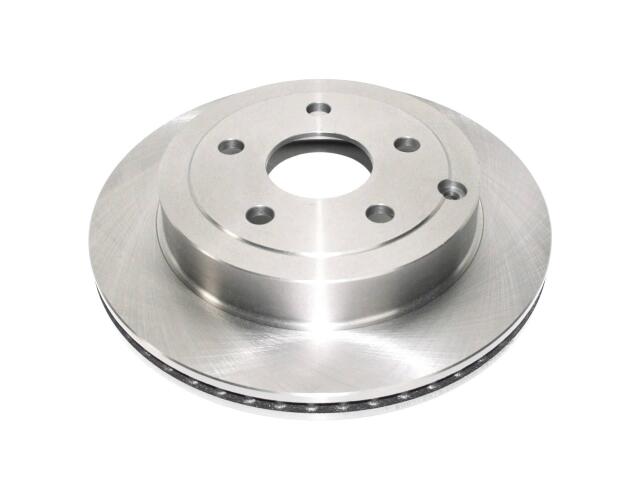

Rotor
DURAGO : BR900512

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.65
Center Hole Diameter (MM): 67.4
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.79
Discard Thickness (MM): 20
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.64
Mounting Bolt Hole Diameter (MM): 16.2
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302
Overall Height (IN): 2.2
Overall Height (MM): 55.8
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

PONTIAC (1)

OE号码

品牌	号码
OE	90051*

品牌	号码
OE	AX90051*
