第三方数据BOSCH : 34011472

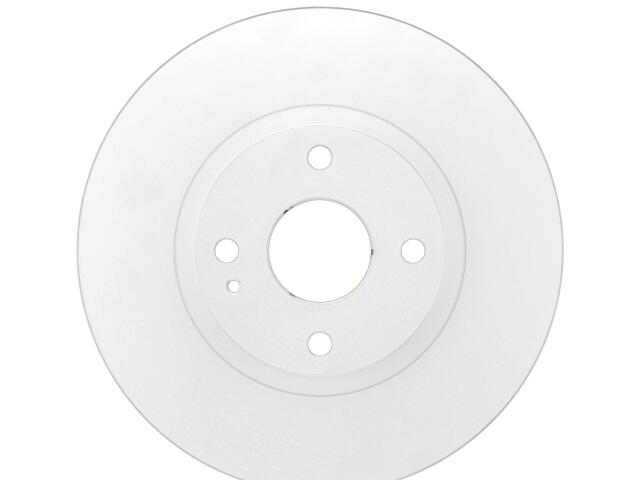

Rotor
BOSCH : 34011472

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 55 mm
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 20 mm
Mounting Bolt Hole Circle Diameter: 100 mm
Mounting Bolt Hole Quantity: 4
Nominal Thickness: 22 mm
Outside Diameter: 269.7 MM
Overall Height: 46 mm
Product Height: 1.811024 IN
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 22 mm

适用车型

MAZDA (1)

参考号

厂商	号码
RAYBESTOS UNBRANDED	98031*

厂商	号码
RAYBESTOS UNBRANDED	980315*

OE号码

品牌	号码
OE	N06Y3325*
