ASTRA
18A1422

第三方数据ASTRA : 18A1422

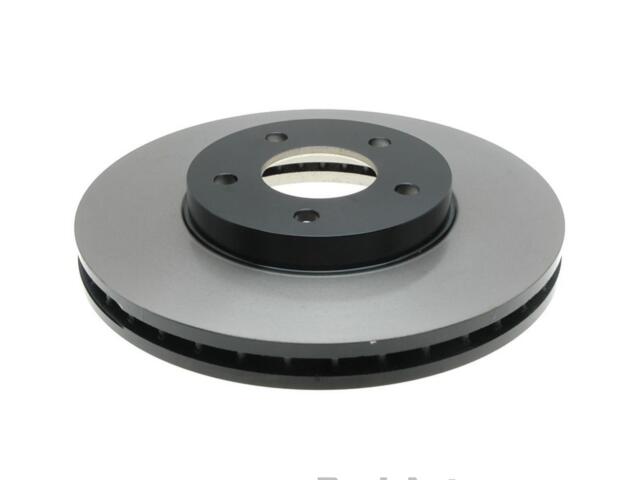

Rotor
ASTRA : 18A1422

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 115
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 71.1MM
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 1.063
Discard Thickness (MM): 27
Hat Finish: Turned
Height (IN): 2
Height (MM): 51.8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.557
Mounting Bolt Hole Diameter (MM): 14.15
Nominal Thickness (IN): 1.185
Nominal Thickness (MM): 30.1
Outside Diameter (IN): 11.815
Outside Diameter (MM): 300.1
Overall Height (IN): 2.04
Overall Height (MM): 51.8
Overall Rotor Diameter (mm): 299.97mm
Pad Contact Surface Width (IN): 2.5
Pad Contact Surface Width (MM): 63.9
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

BUICK (1)

PONTIAC (1)

OE号码

品牌	号码
OE	1917523*
